Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: underlyerFinancing
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:UnderlyerInterestLeg
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Financing terms associated with this underlyer

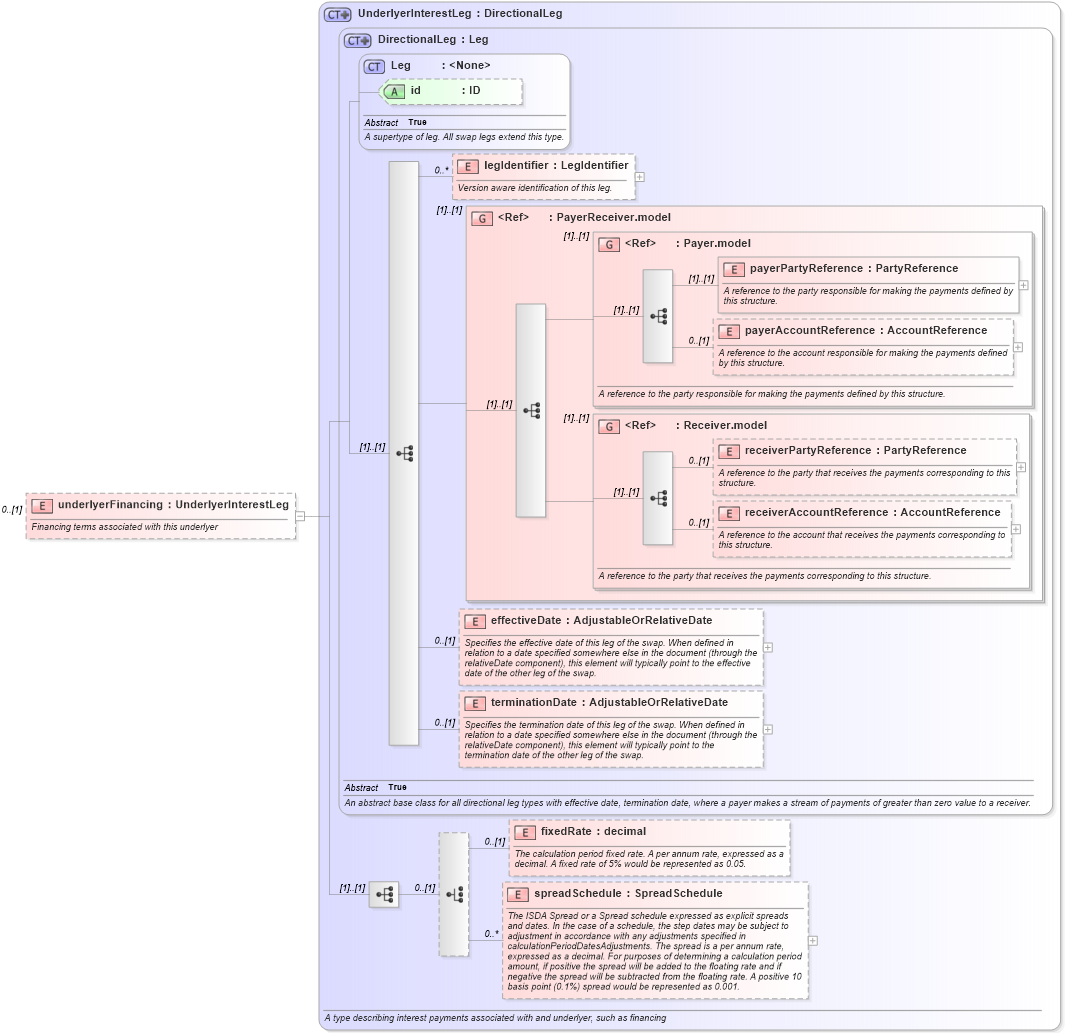

Collapse XSD Schema Diagram:
Drilldown into spreadSchedule in schema fpml-shared-5-10_xsd3 Drilldown into fixedRate in schema fpml-shared-5-10_xsd3 Drilldown into terminationDate in schema fpml-shared-5-10_xsd3 Drilldown into effectiveDate in schema fpml-shared-5-10_xsd3 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd3 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Payer.model in schema fpml-shared-5-10_xsd3 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd3 Drilldown into legIdentifier in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Leg in schema fpml-shared-5-10_xsd3 Drilldown into DirectionalLeg in schema fpml-shared-5-10_xsd3 Drilldown into UnderlyerInterestLeg in schema fpml-shared-5-10_xsd3XSD Diagram of underlyerFinancing in schema fpml-asset-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlyerFinancing" type="UnderlyerInterestLeg" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Financing terms associated with this underlyer</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legIdentifier nsD:legIdentifier 0 unbounded
payerPartyReference nsD:payerPartyReference (1) (1)
payerAccountReference nsD:payerAccountReference 0 (1)
receiverPartyReference nsD:receiverPartyReference 0 (1)
receiverAccountReference nsD:receiverAccountReference 0 (1)
effectiveDate nsD:effectiveDate 0 (1)
terminationDate nsD:terminationDate 0 (1)
fixedRate nsD:fixedRate 0 (1)
spreadSchedule nsD:spreadSchedule 0 unbounded
<xs:group> nsD:PayerReceiver.model (1) (1)
<xs:group> nsD:Payer.model (1) (1)
<xs:group> nsD:Receiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
