Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: volatilityLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:VolatilityLeg
Containing Schema: fpml-volatility-swaps-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

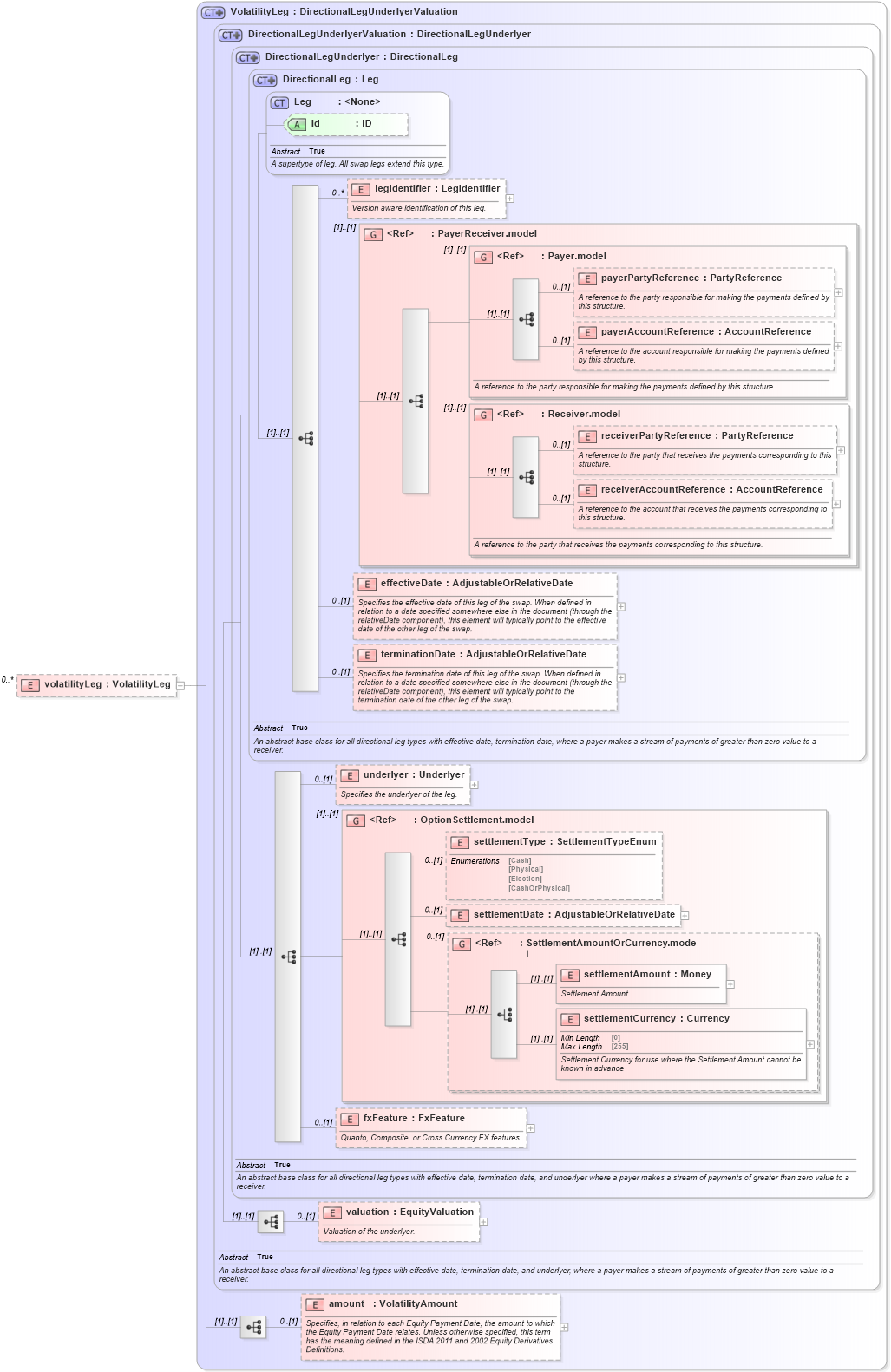

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-volatility-swaps-5-10_xsd2 Drilldown into valuation in schema fpml-eq-shared-5-10_xsd2 Drilldown into fxFeature in schema fpml-eq-shared-5-10_xsd2 Drilldown into settlementCurrency in schema fpml-shared-5-10_xsd4 Drilldown into settlementAmount in schema fpml-shared-5-10_xsd4 Drilldown into SettlementAmountOrCurrency.model in schema fpml-shared-5-10_xsd4 Drilldown into settlementDate in schema fpml-option-shared-5-10_xsd3 Drilldown into settlementType in schema fpml-option-shared-5-10_xsd3 Drilldown into OptionSettlement.model in schema fpml-option-shared-5-10_xsd3 Drilldown into underlyer in schema fpml-eq-shared-5-10_xsd2 Drilldown into terminationDate in schema fpml-shared-5-10_xsd4 Drilldown into effectiveDate in schema fpml-shared-5-10_xsd4 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into legIdentifier in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Leg in schema fpml-shared-5-10_xsd4 Drilldown into DirectionalLeg in schema fpml-shared-5-10_xsd4 Drilldown into DirectionalLegUnderlyer in schema fpml-eq-shared-5-10_xsd2 Drilldown into DirectionalLegUnderlyerValuation in schema fpml-eq-shared-5-10_xsd2 Drilldown into VolatilityLeg in schema fpml-volatility-swaps-5-10_xsd2XSD Diagram of volatilityLeg in schema fpml-volatility-swaps-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="volatilityLeg" type="VolatilityLeg" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legIdentifier nsE:legIdentifier 0 unbounded
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
effectiveDate nsE:effectiveDate 0 (1)
terminationDate nsE:terminationDate 0 (1)
underlyer nsE:underlyer 0 (1)
settlementType nsE:settlementType 0 (1)
settlementDate nsE:settlementDate 0 (1)
settlementAmount nsE:settlementAmount (1) (1)
settlementCurrency nsE:settlementCurrency (1) (1)
fxFeature nsE:fxFeature 0 (1)
valuation nsE:valuation 0 (1)
amount nsE:amount 0 (1)
<xs:group> nsE:PayerReceiver.model (1) (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
<xs:group> nsE:OptionSettlement.model (1) (1)
<xs:group> nsE:SettlementAmountOrCurrency.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
