Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: volatilitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:VolatilitySwapTransactionSupplement
Containing Schema: fpml-volatility-swaps-5-10.xsd
Abstract

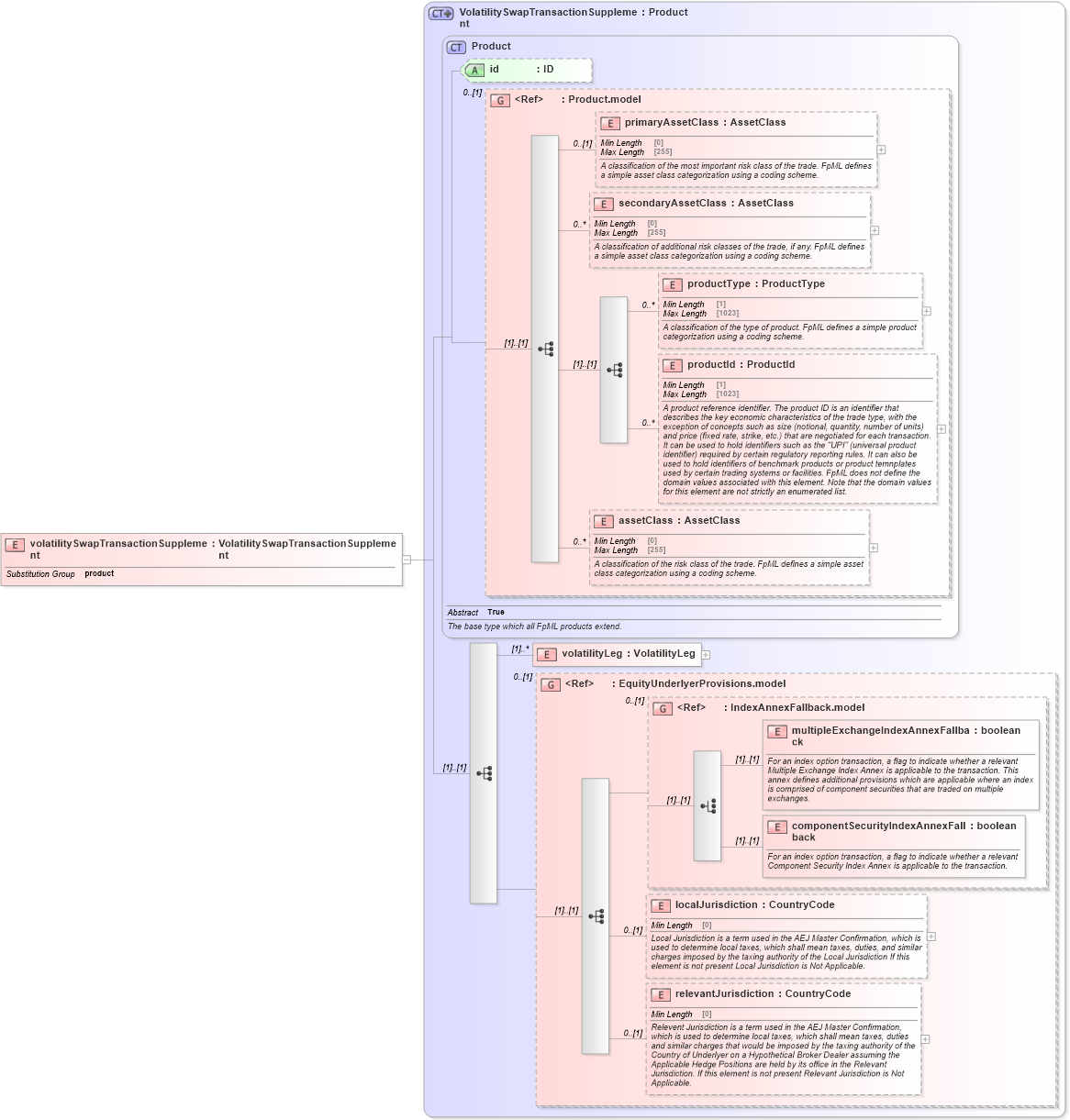

Collapse XSD Schema Diagram:
Drilldown into relevantJurisdiction in schema fpml-eq-shared-5-10_xsd Drilldown into localJurisdiction in schema fpml-eq-shared-5-10_xsd Drilldown into componentSecurityIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd Drilldown into IndexAnnexFallback.model in schema fpml-eq-shared-5-10_xsd Drilldown into EquityUnderlyerProvisions.model in schema fpml-eq-shared-5-10_xsd Drilldown into volatilityLeg in schema fpml-volatility-swaps-5-10_xsd Drilldown into assetClass in schema fpml-shared-5-10_xsd Drilldown into productId in schema fpml-shared-5-10_xsd Drilldown into productType in schema fpml-shared-5-10_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into Product.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Product in schema fpml-shared-5-10_xsd Drilldown into VolatilitySwapTransactionSupplement in schema fpml-volatility-swaps-5-10_xsdXSD Diagram of volatilitySwapTransactionSupplement in schema fpml-volatility-swaps-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="volatilitySwapTransactionSupplement" type="VolatilitySwapTransactionSupplement" substitutionGroup="product" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
volatilityLeg nsA:volatilityLeg (1) unbounded
multipleExchangeIndexAnnexFallback nsA:multipleExchangeIndexAnnexFallback (1) (1)
componentSecurityIndexAnnexFallback nsA:componentSecurityIndexAnnexFallback (1) (1)
localJurisdiction nsA:localJurisdiction 0 (1)
relevantJurisdiction nsA:relevantJurisdiction 0 (1)
<xs:group> nsA:EquityUnderlyerProvisions.model 0 (1)
<xs:group> nsA:IndexAnnexFallback.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
