Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:CommodityExercise
Containing Schema: fpml-com-5-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

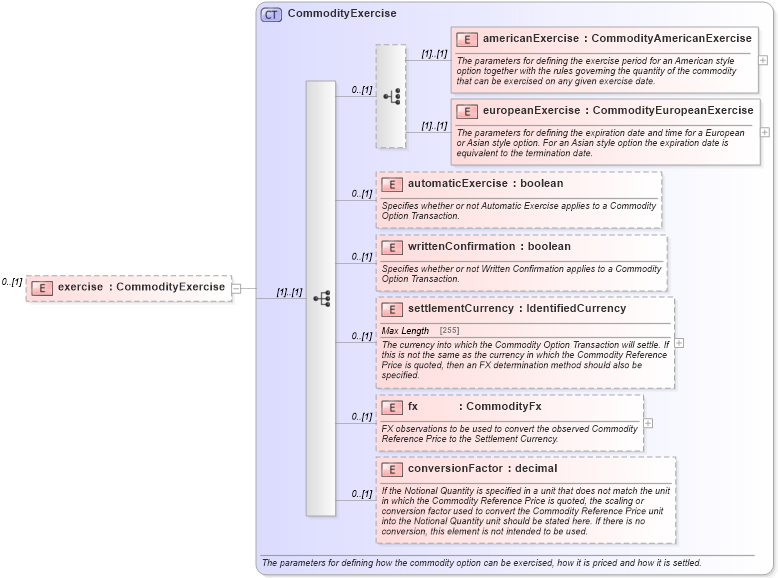

Collapse XSD Schema Diagram:
Drilldown into conversionFactor in schema fpml-com-5-4_xsd Drilldown into fx in schema fpml-com-5-4_xsd Drilldown into settlementCurrency in schema fpml-com-5-4_xsd Drilldown into writtenConfirmation in schema fpml-com-5-4_xsd Drilldown into automaticExercise in schema fpml-com-5-4_xsd Drilldown into europeanExercise in schema fpml-com-5-4_xsd Drilldown into americanExercise in schema fpml-com-5-4_xsd Drilldown into CommodityExercise in schema fpml-com-5-4_xsdXSD Diagram of exercise in schema fpml-com-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exercise" type="CommodityExercise" minOccurs="0">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
americanExercise nsA:americanExercise (1) (1)
europeanExercise nsA:europeanExercise (1) (1)
automaticExercise nsA:automaticExercise 0 (1)
writtenConfirmation nsA:writtenConfirmation 0 (1)
settlementCurrency nsA:settlementCurrency 0 (1)
fx nsA:fx 0 (1)
conversionFactor nsA:conversionFactor 0 (1)
Collapse Derivation Tree:
