Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ExpectedCollateralReturn
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-collateral-processes-5-4.xsd
Abstract

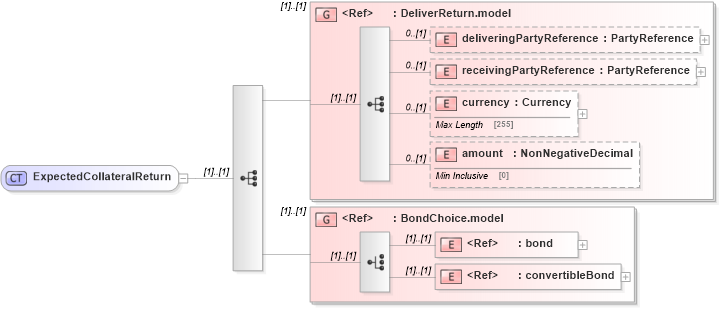

Collapse XSD Schema Diagram:
Drilldown into convertibleBond in schema fpml-asset-5-4_xsd Drilldown into bond in schema fpml-asset-5-4_xsd Drilldown into BondChoice.model in schema fpml-asset-5-4_xsd Drilldown into amount in schema fpml-collateral-processes-5-4_xsd Drilldown into currency in schema fpml-collateral-processes-5-4_xsd Drilldown into receivingPartyReference in schema fpml-collateral-processes-5-4_xsd Drilldown into deliveringPartyReference in schema fpml-collateral-processes-5-4_xsd Drilldown into DeliverReturn.model in schema fpml-collateral-processes-5-4_xsdXSD Diagram of ExpectedCollateralReturn in schema fpml-collateral-processes-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ExpectedCollateralReturn">
    <xsd:sequence>
        <xsd:group ref="DeliverReturn.model" />
        <xsd:group ref="BondChoice.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
deliveringPartyReference nsA:deliveringPartyReference 0 (1)
receivingPartyReference nsA:receivingPartyReference 0 (1)
currency nsA:currency 0 (1)
amount nsA:amount 0 (1)
bond nsA:bond (1) (1)
convertibleBond nsA:convertibleBond (1) (1)
<xs:group> nsA:DeliverReturn.model (1) (1)
<xs:group> nsA:BondChoice.model (1) (1)
