Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: party
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:Party
Containing Schema: fpml-reconciliation-5-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
One party element for each of the principal parties and any other party that is referenced.

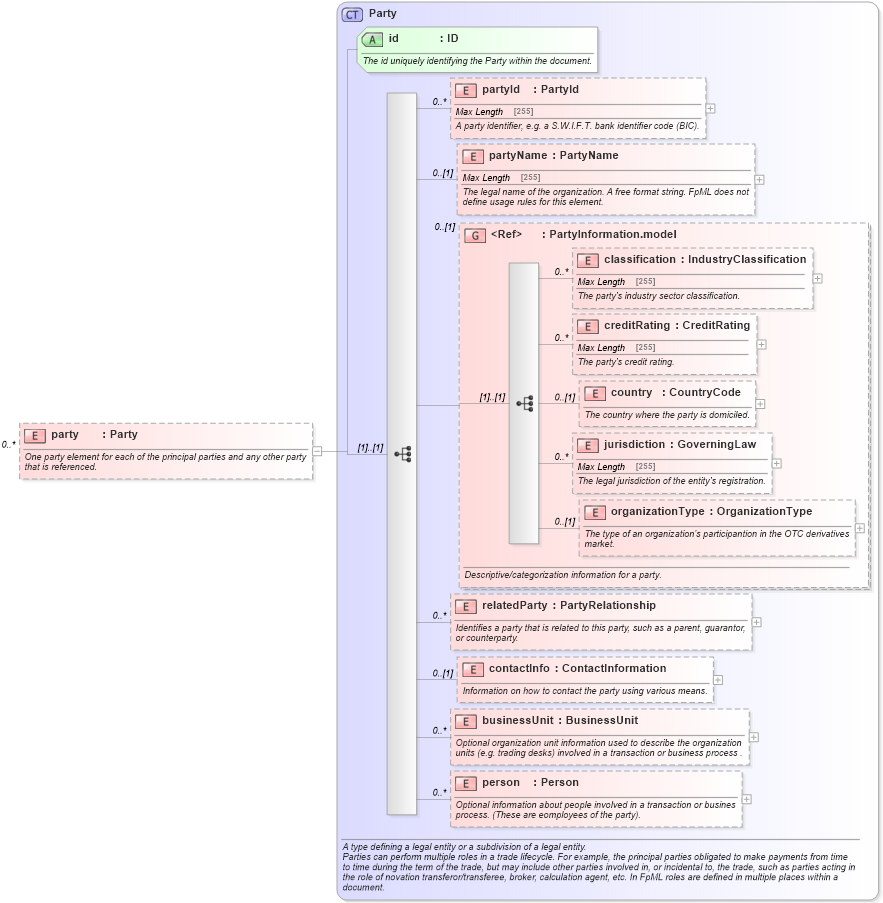

Collapse XSD Schema Diagram:
Drilldown into person in schema fpml-shared-5-4_xsd Drilldown into businessUnit in schema fpml-shared-5-4_xsd Drilldown into contactInfo in schema fpml-shared-5-4_xsd Drilldown into relatedParty in schema fpml-shared-5-4_xsd Drilldown into organizationType in schema fpml-shared-5-4_xsd Drilldown into jurisdiction in schema fpml-shared-5-4_xsd Drilldown into country in schema fpml-shared-5-4_xsd Drilldown into creditRating in schema fpml-shared-5-4_xsd Drilldown into classification in schema fpml-shared-5-4_xsd Drilldown into PartyInformation.model in schema fpml-shared-5-4_xsd Drilldown into partyName in schema fpml-shared-5-4_xsd Drilldown into partyId in schema fpml-shared-5-4_xsd Drilldown into id in schema fpml-shared-5-4_xsd Drilldown into Party in schema fpml-shared-5-4_xsdXSD Diagram of party in schema fpml-reconciliation-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="party" type="Party" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">One party element for each of the principal parties and any other party that is referenced.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
partyId nsA:partyId 0 unbounded
partyName nsA:partyName 0 (1)
classification nsA:classification 0 unbounded
creditRating nsA:creditRating 0 unbounded
country nsA:country 0 (1)
jurisdiction nsA:jurisdiction 0 unbounded
organizationType nsA:organizationType 0 (1)
relatedParty nsA:relatedParty 0 unbounded
contactInfo nsA:contactInfo 0 (1)
businessUnit nsA:businessUnit 0 unbounded
person nsA:person 0 unbounded
<xs:group> nsA:PartyInformation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Required
Collapse Derivation Tree:
