Definition Type: ComplexType
Name: PricingStructure
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-shared-5-9.xsd
Abstract True
Documentation:
An abstract pricing structure base type. Used as a base for structures such as yield curves and volatility matrices.

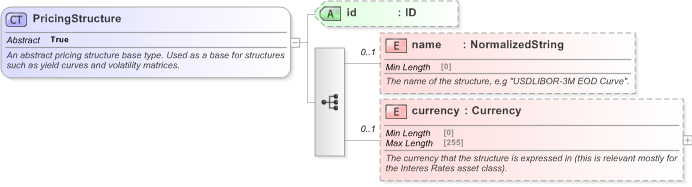

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-9_xsd Drilldown into name in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsdXSD Diagram of PricingStructure in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Confirmation)
Collapse XSD Schema Code:
<xsd:complexType name="PricingStructure" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An abstract pricing structure base type. Used as a base for structures such as yield curves and volatility matrices.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="name" type="NormalizedString" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The name of the structure, e.g "USDLIBOR-3M EOD Curve".</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="currency" type="Currency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The currency that the structure is expressed in (this is relevant mostly for the Interes Rates asset class).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name 0 (1)
currency nsA:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:CreditCurve, nsA:FxCurve, nsA:pricingStructurensA:VolatilityRepresentation, nsA:YieldCurve,
