Definition Type: Element
Name: creditCurve
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CreditCurve
Containing Schema: fpml-mktenv-5-9.xsd
Abstract
Collapse XSD Schema Diagram:

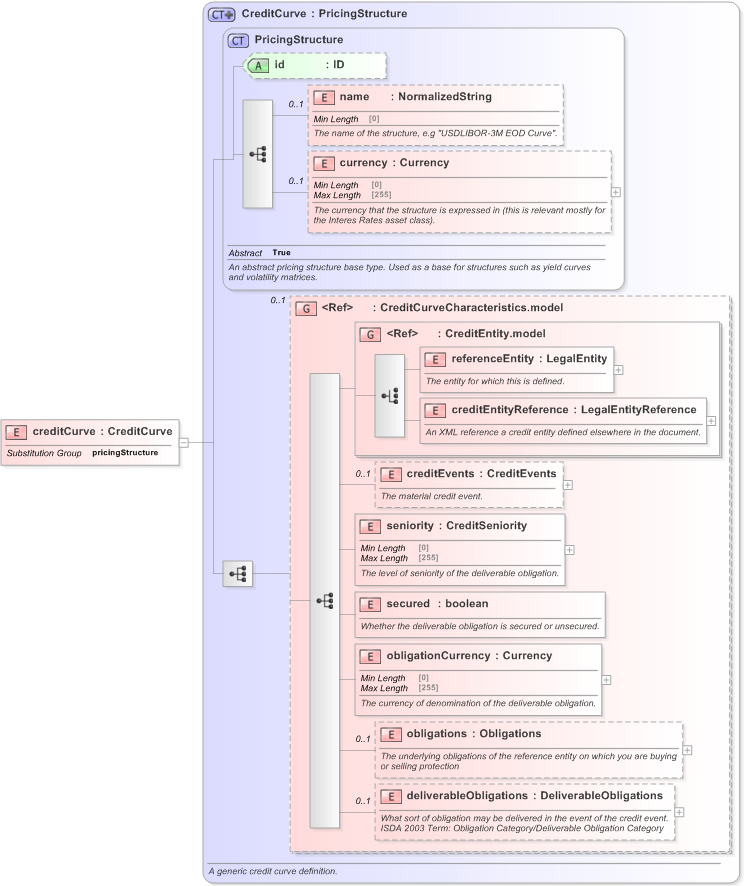

Drilldown into deliverableObligations in schema fpml-mktenv-5-9_xsd Drilldown into obligations in schema fpml-mktenv-5-9_xsd Drilldown into obligationCurrency in schema fpml-mktenv-5-9_xsd Drilldown into secured in schema fpml-mktenv-5-9_xsd Drilldown into seniority in schema fpml-mktenv-5-9_xsd Drilldown into creditEvents in schema fpml-mktenv-5-9_xsd Drilldown into creditEntityReference in schema fpml-asset-5-9_xsd Drilldown into referenceEntity in schema fpml-asset-5-9_xsd Drilldown into CreditEntity.model in schema fpml-asset-5-9_xsd Drilldown into CreditCurveCharacteristics.model in schema fpml-mktenv-5-9_xsd Drilldown into currency in schema fpml-shared-5-9_xsd Drilldown into name in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into PricingStructure in schema fpml-shared-5-9_xsd Drilldown into CreditCurve in schema fpml-mktenv-5-9_xsdXSD Diagram of creditCurve in schema fpml-mktenv-5-9_xsd (Financial products Markup Language (FpML®) - Confirmation)
Collapse XSD Schema Code:
<xsd:element name="creditCurve" type="CreditCurve" substitutionGroup="pricingStructure" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name 0 (1)
currency nsA:currency 0 (1)
referenceEntity nsA:referenceEntity (1) (1)
creditEntityReference nsA:creditEntityReference (1) (1)
creditEvents nsA:creditEvents 0 (1)
seniority nsA:seniority (1) (1)
secured nsA:secured (1) (1)
obligationCurrency nsA:obligationCurrency (1) (1)
obligations nsA:obligations 0 (1)
deliverableObligations nsA:deliverableObligations 0 (1)
<xs:group> nsA:CreditCurveCharacteristics.model 0 (1)
<xs:group> nsA:CreditEntity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:pricingStructure
