Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: LcEvent
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:LoanEvent
Containing Schema: fpml-loan-5-9.xsd
Abstract True
Documentation:
An abstract base type for all LC-level business events.
Collapse XSD Schema Diagram:

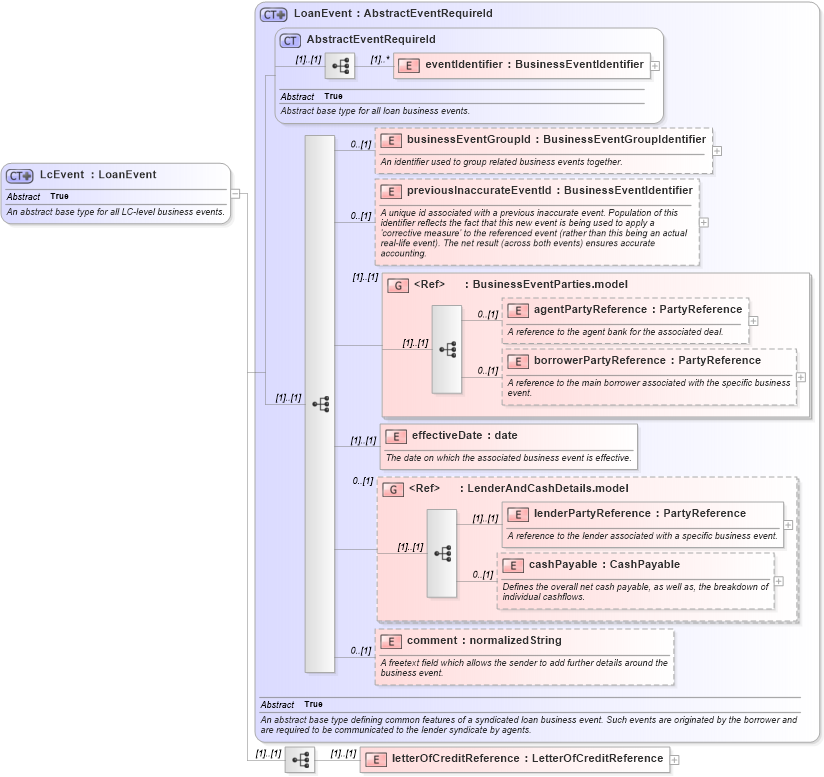

Drilldown into letterOfCreditReference in schema fpml-loan-5-9_xsd Drilldown into comment in schema fpml-loan-5-9_xsd Drilldown into cashPayable in schema fpml-loan-5-9_xsd Drilldown into lenderPartyReference in schema fpml-loan-5-9_xsd Drilldown into LenderAndCashDetails.model in schema fpml-loan-5-9_xsd Drilldown into effectiveDate in schema fpml-loan-5-9_xsd Drilldown into borrowerPartyReference in schema fpml-loan-5-9_xsd Drilldown into agentPartyReference in schema fpml-loan-5-9_xsd Drilldown into BusinessEventParties.model in schema fpml-loan-5-9_xsd Drilldown into previousInaccurateEventId in schema fpml-loan-5-9_xsd Drilldown into businessEventGroupId in schema fpml-loan-5-9_xsd Drilldown into eventIdentifier in schema fpml-loan-5-9_xsd Drilldown into AbstractEventRequireId in schema fpml-loan-5-9_xsd Drilldown into LoanEvent in schema fpml-loan-5-9_xsdXSD Diagram of LcEvent in schema fpml-loan-5-9_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="LcEvent" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An abstract base type for all LC-level business events.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="LoanEvent">
            <xsd:sequence>
                <xsd:element name="letterOfCreditReference" type="LetterOfCreditReference" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
eventIdentifier nsA:eventIdentifier (1) unbounded
businessEventGroupId nsA:businessEventGroupId 0 (1)
previousInaccurateEventId nsA:previousInaccurateEventId 0 (1)
agentPartyReference nsA:agentPartyReference 0 (1)
borrowerPartyReference nsA:borrowerPartyReference 0 (1)
effectiveDate nsA:effectiveDate (1) (1)
lenderPartyReference nsA:lenderPartyReference (1) (1)
cashPayable nsA:cashPayable 0 (1)
comment nsA:comment 0 (1)
letterOfCreditReference nsA:letterOfCreditReference (1) (1)
<xs:group> nsA:BusinessEventParties.model (1) (1)
<xs:group> nsA:LenderAndCashDetails.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:LcAdjustment, nsA:lcEventGroupnsA:LcFxRevaluation, nsA:LcIssuance, nsA:LcIssuanceFeePayment, nsA:LcRateChange, nsA:LcRenewal, nsA:LcTermination,
