Definition Type: ComplexType
Name: KnockOutRateObservation
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:TriggerRateObservation
Containing Schema: fpml-business-events-5-9.xsd
Abstract
Documentation:
Describes an observation that caused a barrier knock out to trigger

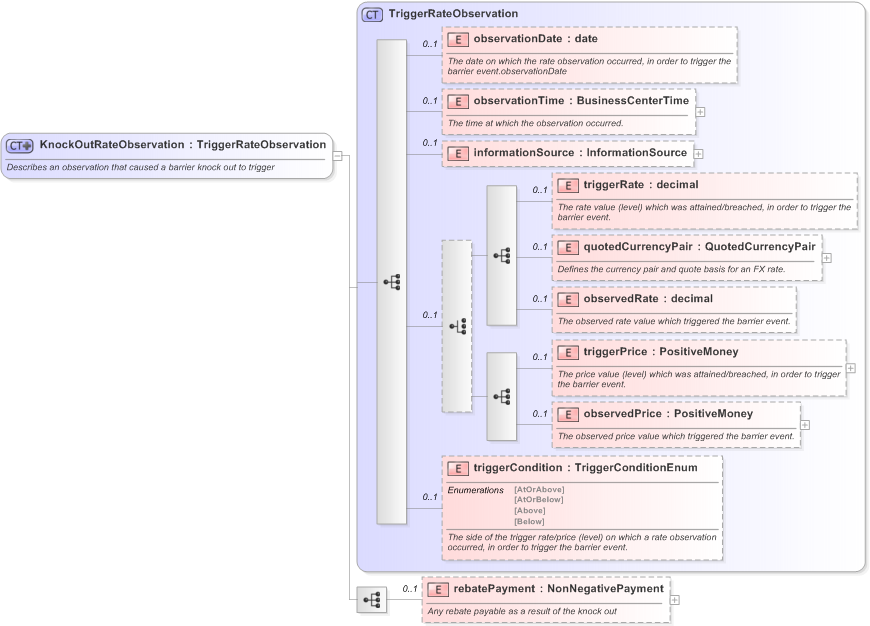

Collapse XSD Schema Diagram:
Drilldown into rebatePayment in schema fpml-business-events-5-9_xsd Drilldown into triggerCondition in schema fpml-business-events-5-9_xsd Drilldown into observedPrice in schema fpml-business-events-5-9_xsd Drilldown into triggerPrice in schema fpml-business-events-5-9_xsd Drilldown into observedRate in schema fpml-business-events-5-9_xsd Drilldown into quotedCurrencyPair in schema fpml-business-events-5-9_xsd Drilldown into triggerRate in schema fpml-business-events-5-9_xsd Drilldown into informationSource in schema fpml-business-events-5-9_xsd Drilldown into observationTime in schema fpml-business-events-5-9_xsd Drilldown into observationDate in schema fpml-business-events-5-9_xsd Drilldown into TriggerRateObservation in schema fpml-business-events-5-9_xsdXSD Diagram of KnockOutRateObservation in schema fpml-business-events-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="KnockOutRateObservation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes an observation that caused a barrier knock out to trigger</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="TriggerRateObservation">
            <xsd:sequence>
                <xsd:element name="rebatePayment" type="NonNegativePayment" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Any rebate payable as a result of the knock out</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationDate nsA:observationDate 0 (1)
observationTime nsA:observationTime 0 (1)
informationSource nsA:informationSource 0 (1)
triggerRate nsA:triggerRate 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair 0 (1)
observedRate nsA:observedRate 0 (1)
triggerPrice nsA:triggerPrice 0 (1)
observedPrice nsA:observedPrice 0 (1)
triggerCondition nsA:triggerCondition 0 (1)
rebatePayment nsA:rebatePayment 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:knockOut
