Definition Type: ComplexType
Name: TriggerRateObservation
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-business-events-5-9.xsd
Abstract

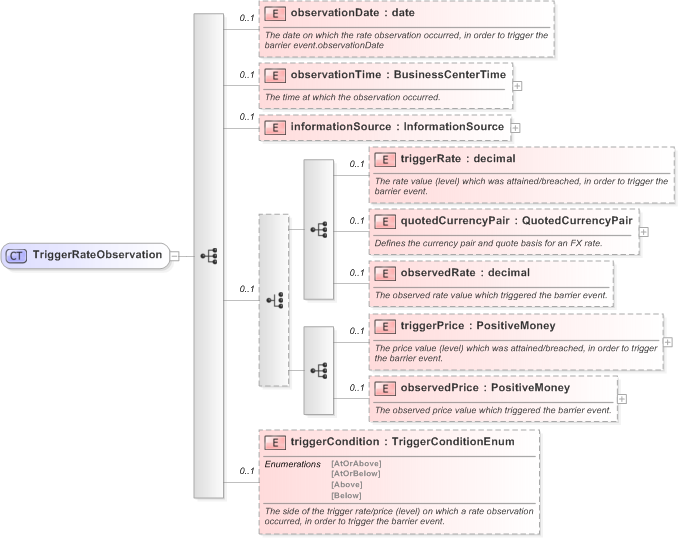

Collapse XSD Schema Diagram:
Drilldown into triggerCondition in schema fpml-business-events-5-9_xsd Drilldown into observedPrice in schema fpml-business-events-5-9_xsd Drilldown into triggerPrice in schema fpml-business-events-5-9_xsd Drilldown into observedRate in schema fpml-business-events-5-9_xsd Drilldown into quotedCurrencyPair in schema fpml-business-events-5-9_xsd Drilldown into triggerRate in schema fpml-business-events-5-9_xsd Drilldown into informationSource in schema fpml-business-events-5-9_xsd Drilldown into observationTime in schema fpml-business-events-5-9_xsd Drilldown into observationDate in schema fpml-business-events-5-9_xsdXSD Diagram of TriggerRateObservation in schema fpml-business-events-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="TriggerRateObservation">
    <xsd:sequence>
        <xsd:element name="observationDate" type="xsd:date" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date on which the rate observation occurred, in order to trigger the barrier event.observationDate</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="observationTime" type="BusinessCenterTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The time at which the observation occurred.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="informationSource" type="InformationSource" minOccurs="0" />
        <xsd:choice minOccurs="0">
            <xsd:sequence>
                <xsd:element name="triggerRate" type="xsd:decimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The rate value (level) which was attained/breached, in order to trigger the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines the currency pair and quote basis for an FX rate.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="observedRate" type="xsd:decimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The observed rate value which triggered the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:sequence>
                <xsd:element name="triggerPrice" type="PositiveMoney" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The price value (level) which was attained/breached, in order to trigger the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="observedPrice" type="PositiveMoney" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The observed price value which triggered the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:choice>
        <xsd:element name="triggerCondition" type="TriggerConditionEnum" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The side of the trigger rate/price (level) on which a rate observation occurred, in order to trigger the barrier event.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationDate nsA:observationDate 0 (1)
observationTime nsA:observationTime 0 (1)
informationSource nsA:informationSource 0 (1)
triggerRate nsA:triggerRate 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair 0 (1)
observedRate nsA:observedRate 0 (1)
triggerPrice nsA:triggerPrice 0 (1)
observedPrice nsA:observedPrice 0 (1)
triggerCondition nsA:triggerCondition 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:knockIn, nsA:KnockOutRateObservation, nsA:TouchRateObservation
