Definition Type: ComplexType
Name: TouchRateObservation
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:TriggerRateObservation
Containing Schema: fpml-business-events-5-9.xsd
Abstract

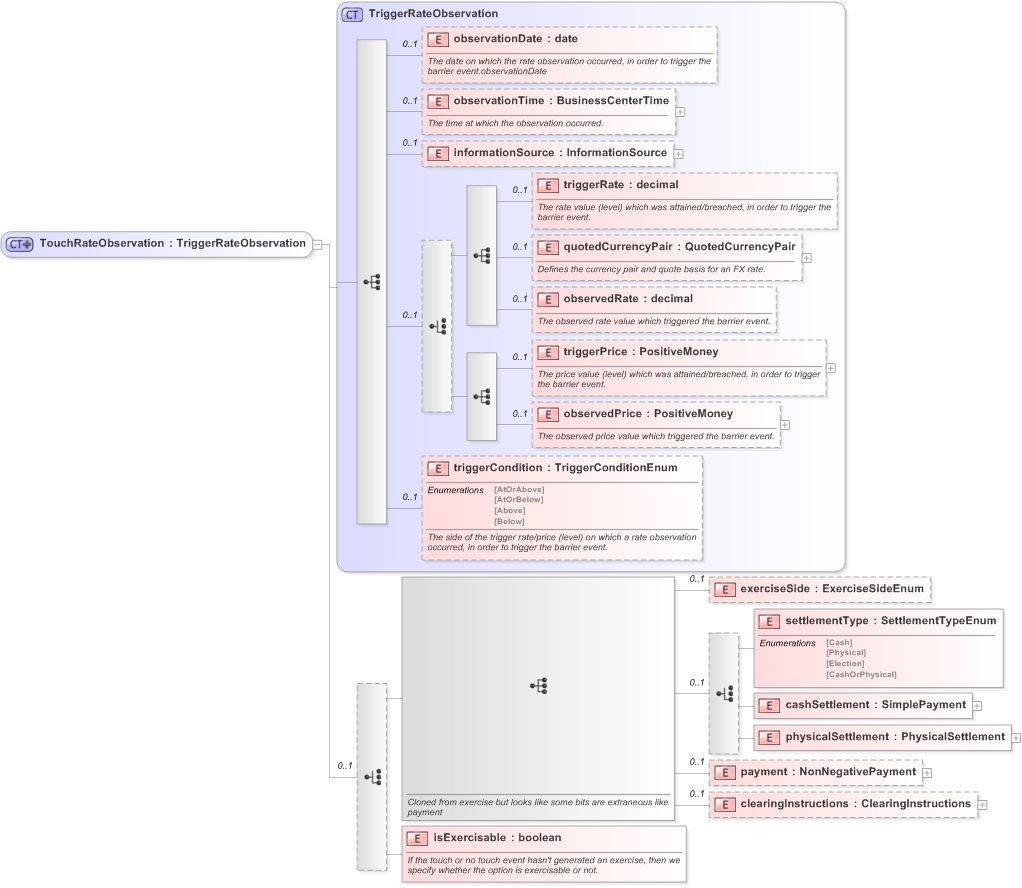

Collapse XSD Schema Diagram:
Drilldown into isExercisable in schema fpml-business-events-5-9_xsd Drilldown into clearingInstructions in schema fpml-business-events-5-9_xsd Drilldown into payment in schema fpml-business-events-5-9_xsd Drilldown into physicalSettlement in schema fpml-business-events-5-9_xsd Drilldown into cashSettlement in schema fpml-business-events-5-9_xsd Drilldown into settlementType in schema fpml-business-events-5-9_xsd Drilldown into exerciseSide in schema fpml-business-events-5-9_xsd Drilldown into triggerCondition in schema fpml-business-events-5-9_xsd Drilldown into observedPrice in schema fpml-business-events-5-9_xsd Drilldown into triggerPrice in schema fpml-business-events-5-9_xsd Drilldown into observedRate in schema fpml-business-events-5-9_xsd Drilldown into quotedCurrencyPair in schema fpml-business-events-5-9_xsd Drilldown into triggerRate in schema fpml-business-events-5-9_xsd Drilldown into informationSource in schema fpml-business-events-5-9_xsd Drilldown into observationTime in schema fpml-business-events-5-9_xsd Drilldown into observationDate in schema fpml-business-events-5-9_xsd Drilldown into TriggerRateObservation in schema fpml-business-events-5-9_xsdXSD Diagram of TouchRateObservation in schema fpml-business-events-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="TouchRateObservation">
    <xsd:complexContent>
        <xsd:extension base="TriggerRateObservation">
            <xsd:choice minOccurs="0">
                <xsd:sequence>
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Cloned from exercise but looks like some bits are extraneous like payment</xsd:documentation>
                    </xsd:annotation>
                    <xsd:element name="exerciseSide" type="ExerciseSideEnum" minOccurs="0" />
                    <xsd:choice minOccurs="0">
                        <xsd:element name="settlementType" type="SettlementTypeEnum" />
                        <xsd:element name="cashSettlement" type="SimplePayment" />
                        <xsd:element name="physicalSettlement" type="PhysicalSettlement" />
                    </xsd:choice>
                    <xsd:element name="payment" type="NonNegativePayment" minOccurs="0" />
                    <xsd:element name="clearingInstructions" type="ClearingInstructions" minOccurs="0" />
                </xsd:sequence>
                <xsd:element name="isExercisable" type="xsd:boolean">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">If the touch or no touch event hasn't generated an exercise, then we specify whether the option is exercisable or not.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationDate nsA:observationDate 0 (1)
observationTime nsA:observationTime 0 (1)
informationSource nsA:informationSource 0 (1)
triggerRate nsA:triggerRate 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair 0 (1)
observedRate nsA:observedRate 0 (1)
triggerPrice nsA:triggerPrice 0 (1)
observedPrice nsA:observedPrice 0 (1)
triggerCondition nsA:triggerCondition 0 (1)
exerciseSide nsA:exerciseSide 0 (1)
settlementType nsA:settlementType (1) (1)
cashSettlement nsA:cashSettlement (1) (1)
physicalSettlement nsA:physicalSettlement (1) (1)
payment nsA:payment 0 (1)
clearingInstructions nsA:clearingInstructions 0 (1)
isExercisable nsA:isExercisable (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:touch
