Definition Type: ComplexType
Name: FxOptionPayout
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:NonNegativeMoney
Containing Schema: fpml-fx-5-9.xsd
Abstract
Documentation:
A type that contains full details of a predefined fixed payout which may occur (or not) in a Barrier Option or Digital Option when a trigger event occurs (or not).

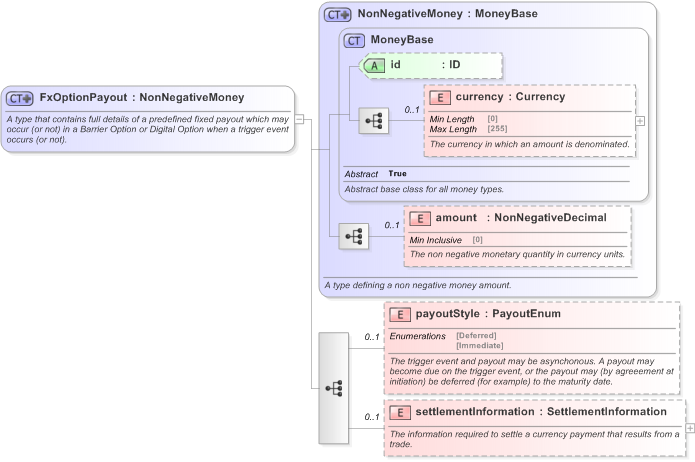

Collapse XSD Schema Diagram:
Drilldown into settlementInformation in schema fpml-fx-5-9_xsd Drilldown into payoutStyle in schema fpml-fx-5-9_xsd Drilldown into amount in schema fpml-shared-5-9_xsd Drilldown into currency in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into MoneyBase in schema fpml-shared-5-9_xsd Drilldown into NonNegativeMoney in schema fpml-shared-5-9_xsdXSD Diagram of FxOptionPayout in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="FxOptionPayout">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that contains full details of a predefined fixed payout which may occur (or not) in a Barrier Option or Digital Option when a trigger event occurs (or not).</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NonNegativeMoney">
            <xsd:sequence>
                <xsd:element name="payoutStyle" type="PayoutEnum" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The trigger event and payout may be asynchonous. A payout may become due on the trigger event, or the payout may (by agreeement at initiation) be deferred (for example) to the maturity date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="settlementInformation" type="SettlementInformation" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The information required to settle a currency payment that results from a trade.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsA:currency 0 (1)
amount nsA:amount 0 (1)
payoutStyle nsA:payoutStyle 0 (1)
settlementInformation nsA:settlementInformation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:payout
