Definition Type: ComplexType
Name: MoneyBase
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-shared-5-9.xsd
Abstract True
Documentation:
Abstract base class for all money types.

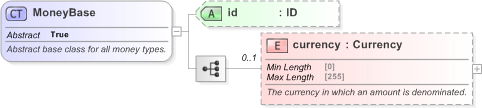

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsdXSD Diagram of MoneyBase in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="MoneyBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Abstract base class for all money types.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="currency" type="Currency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The currency in which an amount is denominated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsA:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Money, nsA:NonNegativeMoney, nsA:PositiveMoney
