Definition Type: ComplexType
Name: FxPerformanceFixedLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:FxPerformanceLeg
Containing Schema: fpml-fx-5-9.xsd
Abstract
Documentation:
FX Performance Fixed Leg describes Fixed FX Rate Payer and Fixed Rate.

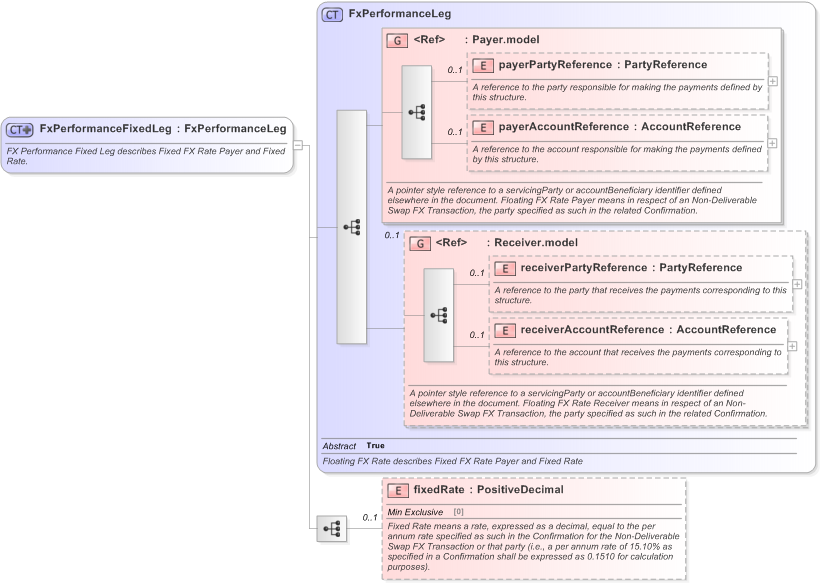

Collapse XSD Schema Diagram:
Drilldown into fixedRate in schema fpml-fx-5-9_xsd Drilldown into receiverAccountReference in schema fpml-shared-5-9_xsd Drilldown into receiverPartyReference in schema fpml-shared-5-9_xsd Drilldown into Receiver.model in schema fpml-shared-5-9_xsd Drilldown into payerAccountReference in schema fpml-shared-5-9_xsd Drilldown into payerPartyReference in schema fpml-shared-5-9_xsd Drilldown into Payer.model in schema fpml-shared-5-9_xsd Drilldown into FxPerformanceLeg in schema fpml-fx-5-9_xsdXSD Diagram of FxPerformanceFixedLeg in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="FxPerformanceFixedLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">FX Performance Fixed Leg describes Fixed FX Rate Payer and Fixed Rate.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FxPerformanceLeg">
            <xsd:sequence>
                <xsd:element name="fixedRate" type="PositiveDecimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Fixed Rate means a rate, expressed as a decimal, equal to the per annum rate specified as such in the Confirmation for the Non-Deliverable Swap FX Transaction or that party (i.e., a per annum rate of 15.10% as specified in a Confirmation shall be expressed as 0.1510 for calculation purposes).</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference 0 (1)
payerAccountReference nsA:payerAccountReference 0 (1)
receiverPartyReference nsA:receiverPartyReference 0 (1)
receiverAccountReference nsA:receiverAccountReference 0 (1)
fixedRate nsA:fixedRate 0 (1)
<xs:group> nsA:Payer.model (1) (1)
<xs:group> nsA:Receiver.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:fixedLeg
