Definition Type: ComplexType
Name: FloatingRateCalculation
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:FloatingRate
Containing Schema: fpml-shared-5-9.xsd
Abstract
Documentation:
A type defining the floating rate and definitions relating to the calculation of floating rate amounts.

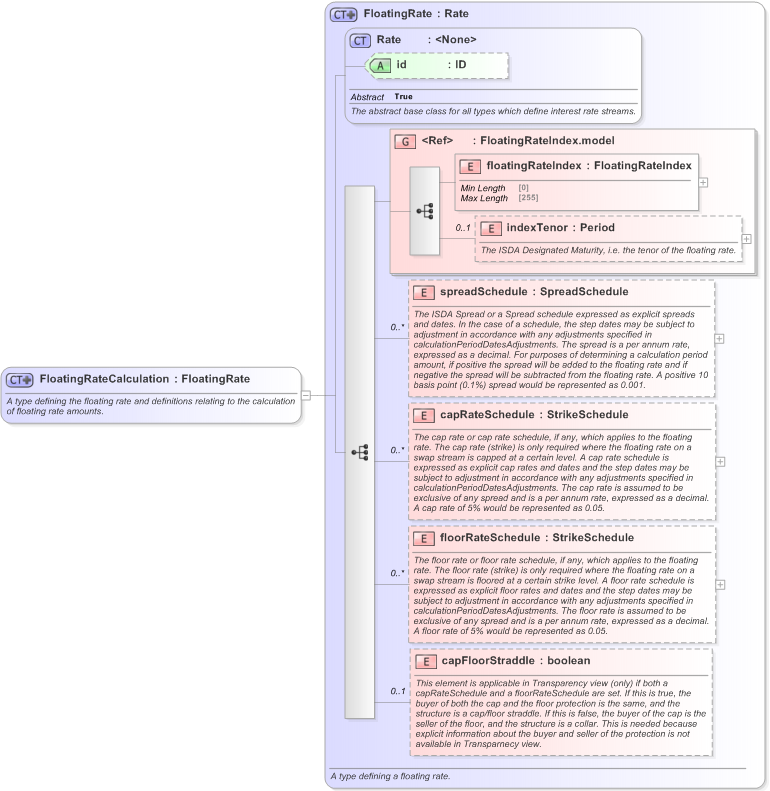

Collapse XSD Schema Diagram:
Drilldown into capFloorStraddle in schema fpml-shared-5-9_xsd Drilldown into floorRateSchedule in schema fpml-shared-5-9_xsd Drilldown into capRateSchedule in schema fpml-shared-5-9_xsd Drilldown into spreadSchedule in schema fpml-shared-5-9_xsd Drilldown into indexTenor in schema fpml-shared-5-9_xsd Drilldown into floatingRateIndex in schema fpml-shared-5-9_xsd Drilldown into FloatingRateIndex.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Rate in schema fpml-shared-5-9_xsd Drilldown into FloatingRate in schema fpml-shared-5-9_xsdXSD Diagram of FloatingRateCalculation in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="FloatingRateCalculation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the floating rate and definitions relating to the calculation of floating rate amounts.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FloatingRate">
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRateIndex nsA:floatingRateIndex (1) (1)
indexTenor nsA:indexTenor 0 (1)
spreadSchedule nsA:spreadSchedule 0 unbounded
capRateSchedule nsA:capRateSchedule 0 unbounded
floorRateSchedule nsA:floorRateSchedule 0 unbounded
capFloorStraddle nsA:capFloorStraddle 0 (1)
<xs:group> nsA:FloatingRateIndex.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:floatingRate, nsA:floatingRateCalculation, nsA:floatingRateCalculationnsA:InflationRateCalculation,
