Definition Type: ComplexType
Name: InflationRateCalculation
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:FloatingRateCalculation
Containing Schema: fpml-ird-5-9.xsd
Abstract
Documentation:
A type defining the components specifiying an Inflation Rate Calculation

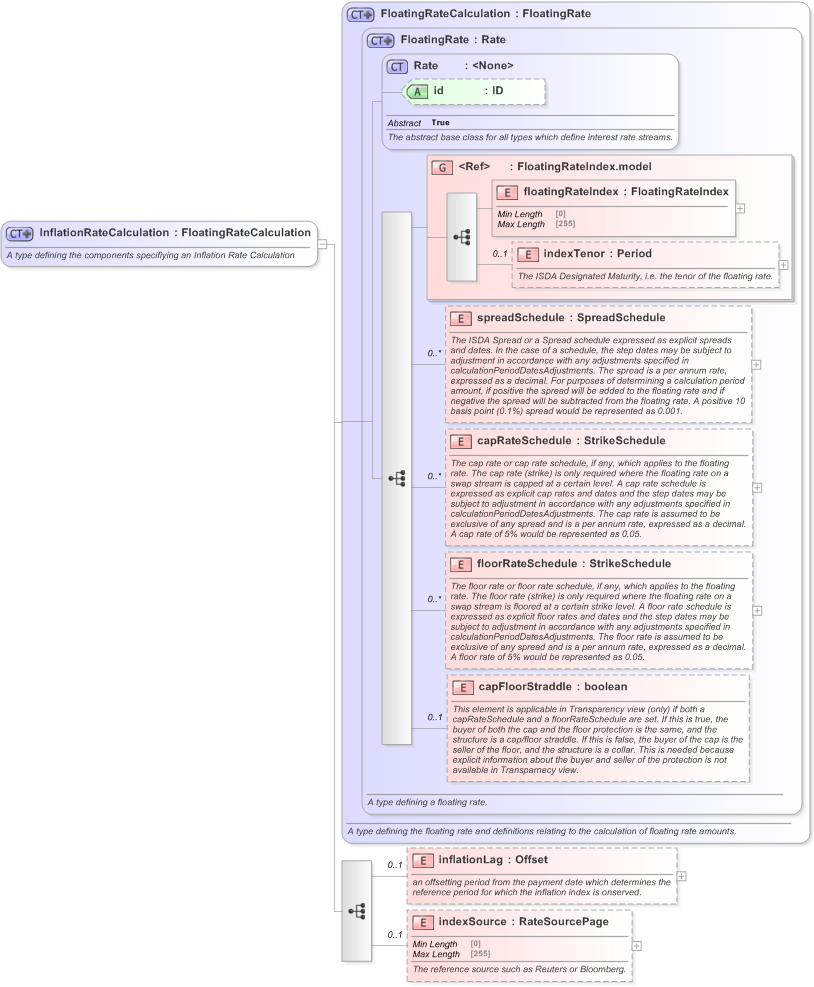

Collapse XSD Schema Diagram:
Drilldown into indexSource in schema fpml-ird-5-9_xsd Drilldown into inflationLag in schema fpml-ird-5-9_xsd Drilldown into capFloorStraddle in schema fpml-shared-5-9_xsd Drilldown into floorRateSchedule in schema fpml-shared-5-9_xsd Drilldown into capRateSchedule in schema fpml-shared-5-9_xsd Drilldown into spreadSchedule in schema fpml-shared-5-9_xsd Drilldown into indexTenor in schema fpml-shared-5-9_xsd Drilldown into floatingRateIndex in schema fpml-shared-5-9_xsd Drilldown into FloatingRateIndex.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Rate in schema fpml-shared-5-9_xsd Drilldown into FloatingRate in schema fpml-shared-5-9_xsd Drilldown into FloatingRateCalculation in schema fpml-shared-5-9_xsdXSD Diagram of InflationRateCalculation in schema fpml-ird-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="InflationRateCalculation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the components specifiying an Inflation Rate Calculation</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FloatingRateCalculation">
            <xsd:sequence>
                <xsd:element name="inflationLag" type="Offset" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">an offsetting period from the payment date which determines the reference period for which the inflation index is onserved.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="indexSource" type="RateSourcePage" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The reference source such as Reuters or Bloomberg.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRateIndex nsA:floatingRateIndex (1) (1)
indexTenor nsA:indexTenor 0 (1)
spreadSchedule nsA:spreadSchedule 0 unbounded
capRateSchedule nsA:capRateSchedule 0 unbounded
floorRateSchedule nsA:floorRateSchedule 0 unbounded
capFloorStraddle nsA:capFloorStraddle 0 (1)
inflationLag nsA:inflationLag 0 (1)
indexSource nsA:indexSource 0 (1)
<xs:group> nsA:FloatingRateIndex.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:inflationRateCalculation
