Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ConcatenatedOperationType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateOperationType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
An ordered sequence of two or more single coordinate operations. The sequence of operations is constrained by the requirement that the source coordinate reference system of step (n+1) must be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated operation.

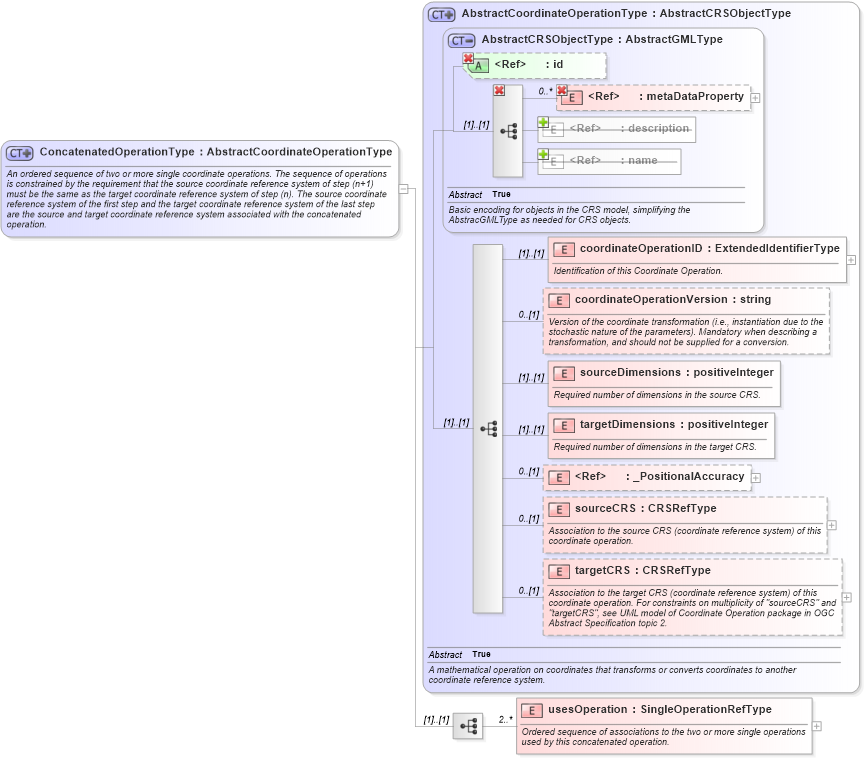

Collapse XSD Schema Diagram:
Drilldown into usesOperation in schema coordinateoperations_xsd Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into _PositionalAccuracy in schema dataquality_xsd Drilldown into targetDimensions in schema coordinateoperations_xsd Drilldown into sourceDimensions in schema coordinateoperations_xsd Drilldown into coordinateOperationVersion in schema coordinateoperations_xsd Drilldown into coordinateOperationID in schema coordinateoperations_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCRSObjectType in schema referencesystems_xsd Drilldown into AbstractCoordinateOperationType in schema coordinateoperations_xsdXSD Diagram of ConcatenatedOperationType in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ConcatenatedOperationType">
    <annotation>
        <documentation>An ordered sequence of two or more single coordinate operations. The sequence of operations is constrained by the requirement that the source coordinate reference system of step (n+1) must be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated operation. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoordinateOperationType">
            <sequence>
                <element name="usesOperation" type="gml:SingleOperationRefType" minOccurs="2" maxOccurs="unbounded">
                    <annotation>
                        <documentation>Ordered sequence of associations to the two or more single operations used by this concatenated operation. </documentation>
                    </annotation>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
coordinateOperationID gml:coordinateOperationID (1) (1)
coordinateOperationVersion gml:coordinateOperationVersion 0 (1)
sourceDimensions gml:sourceDimensions (1) (1)
targetDimensions gml:targetDimensions (1) (1)
_PositionalAccuracy gml:_PositionalAccuracy 0 (1)
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
usesOperation gml:usesOperation 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:ConcatenatedOperation
