Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ConversionType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractGeneralConversionType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
A concrete general-purpose operation on coordinates that does not include any change of Datum. The best-known example of a coordinate conversion is a map projection. The parameters describing coordinate conversions are defined rather than empirically derived. Note that some conversions have no parameters.

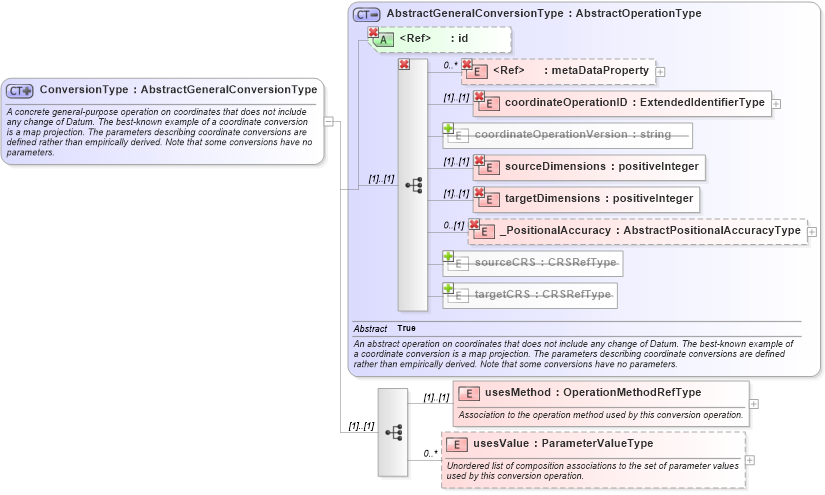

Collapse XSD Schema Diagram:
Drilldown into usesValue in schema coordinateoperations_xsd Drilldown into usesMethod in schema coordinateoperations_xsd Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into _PositionalAccuracy in schema coordinateoperations_xsd Drilldown into targetDimensions in schema coordinateoperations_xsd Drilldown into sourceDimensions in schema coordinateoperations_xsd Drilldown into coordinateOperationVersion in schema coordinateoperations_xsd Drilldown into coordinateOperationID in schema coordinateoperations_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGeneralConversionType in schema coordinateoperations_xsdXSD Diagram of ConversionType in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ConversionType">
    <annotation>
        <documentation>A concrete general-purpose operation on coordinates that does not include any change of Datum. The best-known example of a coordinate conversion is a map projection. The parameters describing coordinate conversions are defined rather than empirically derived. Note that some conversions have no parameters. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGeneralConversionType">
            <sequence>
                <element name="usesMethod" type="gml:OperationMethodRefType">
                    <annotation>
                        <documentation>Association to the operation method used by this conversion operation. </documentation>
                    </annotation>
                </element>
                <element name="usesValue" type="gml:ParameterValueType" minOccurs="0" maxOccurs="unbounded">
                    <annotation>
                        <documentation>Unordered list of composition associations to the set of parameter values used by this conversion operation. </documentation>
                    </annotation>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
coordinateOperationID gml:coordinateOperationID (1) (1)
coordinateOperationVersion gml:coordinateOperationVersion 0 (1)
sourceDimensions gml:sourceDimensions (1) (1)
targetDimensions gml:targetDimensions (1) (1)
_PositionalAccuracy gml:_PositionalAccuracy 0 (1)
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
metaDataProperty gml:metaDataProperty 0 unbounded
coordinateOperationID gml:coordinateOperationID (1) (1)
sourceDimensions gml:sourceDimensions (1) (1)
targetDimensions gml:targetDimensions (1) (1)
_PositionalAccuracy gml:_PositionalAccuracy 0 (1)
usesMethod gml:usesMethod (1) (1)
usesValue gml:usesValue 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:Conversion
