Documentation for Geography Markup Language
Definition Type: ComplexType
Name: RectifiedGridDomainType
Namespace: http://www.opengis.net/gml
Type: gml:DomainSetType
Containing Schema: coverage.xsd
Abstract

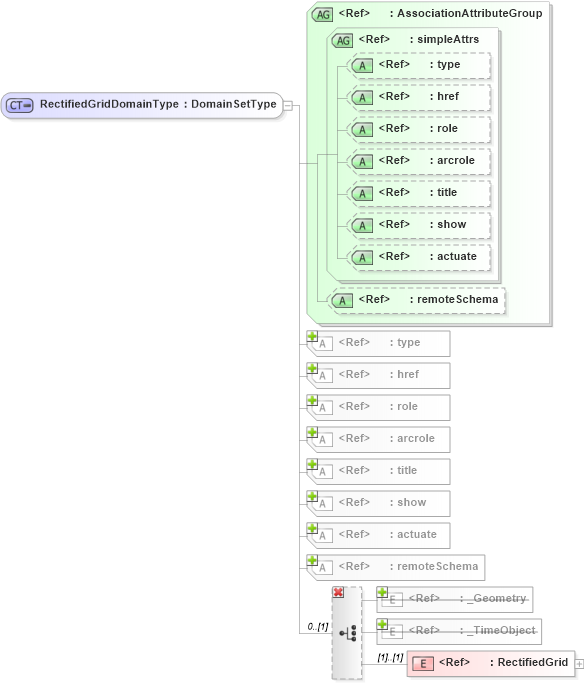

Collapse XSD Schema Diagram:
Drilldown into RectifiedGrid in schema grids_xsd Drilldown into _TimeObject in schema temporal_xsd Drilldown into _Geometry in schema geometrybasic0d1d_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of RectifiedGridDomainType in schema coverage_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="RectifiedGridDomainType">
    <complexContent>
        <restriction base="gml:DomainSetType">
            <choice minOccurs="0">
                <element ref="gml:RectifiedGrid" />
            </choice>
            <attributeGroup ref="gml:AssociationAttributeGroup" />
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
_Geometry gml:_Geometry (1) (1)
_TimeObject gml:_TimeObject (1) (1)
RectifiedGrid gml:RectifiedGrid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:rectifiedGridDomain
