Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TemporalDatumBaseType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractDatumType
Containing Schema: datums.xsd
Abstract True
Documentation:
Partially defines the origin of a temporal coordinate reference system. This type restricts the AbstractDatumType to remove the "anchorPoint" and "realizationEpoch" elements.

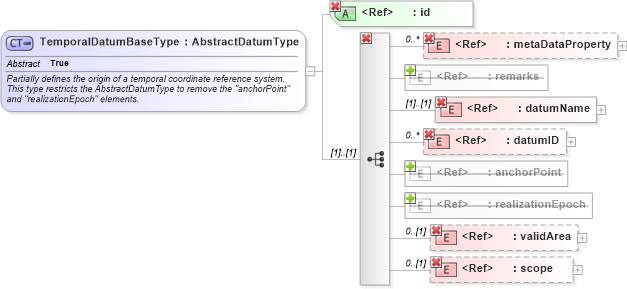

Collapse XSD Schema Diagram:
Drilldown into scope in schema referencesystems_xsd Drilldown into validArea in schema referencesystems_xsd Drilldown into realizationEpoch in schema datums_xsd Drilldown into anchorPoint in schema datums_xsd Drilldown into datumID in schema datums_xsd Drilldown into datumName in schema datums_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsdXSD Diagram of TemporalDatumBaseType in schema datums_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TemporalDatumBaseType" abstract="true">
    <annotation>
        <documentation>Partially defines the origin of a temporal coordinate reference system. This type restricts the AbstractDatumType to remove the "anchorPoint" and "realizationEpoch" elements. </documentation>
    </annotation>
    <complexContent>
        <restriction base="gml:AbstractDatumType">
            <sequence>
                <element ref="gml:metaDataProperty" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:datumName" />
                <element ref="gml:datumID" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:validArea" minOccurs="0" />
                <element ref="gml:scope" minOccurs="0" />
            </sequence>
            <attribute ref="gml:id" use="required" />
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
remarks gml:remarks 0 (1)
datumName gml:datumName (1) (1)
datumID gml:datumID 0 unbounded
anchorPoint gml:anchorPoint 0 (1)
realizationEpoch gml:realizationEpoch 0 (1)
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
metaDataProperty gml:metaDataProperty 0 unbounded
datumName gml:datumName (1) (1)
datumID gml:datumID 0 unbounded
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:TemporalDatumType
