Documentation for Geography Markup Language
Definition Type: ComplexType
Name: VerticalCSType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateSystemType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
A one-dimensional coordinate system used to record the heights (or depths) of points. Such a coordinate system is usually dependent on the Earth's gravity field, perhaps loosely as when atmospheric pressure is the basis for the vertical coordinate system axis. The VerticalCSType shall have one usesAxis association.

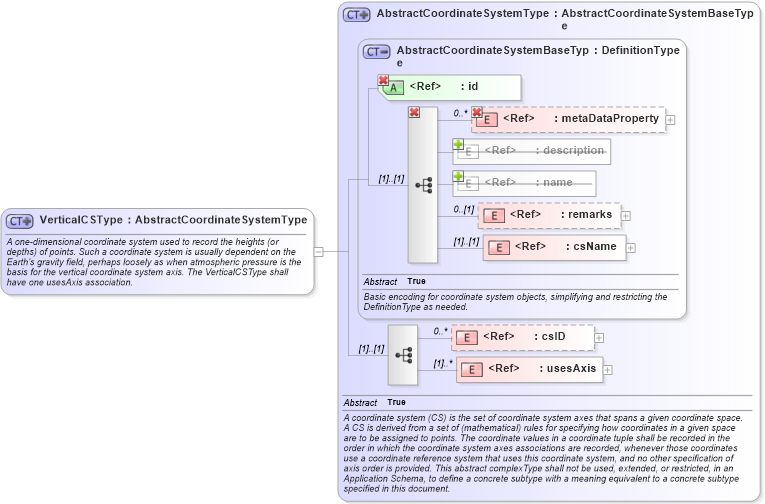

Collapse XSD Schema Diagram:
Drilldown into usesAxis in schema coordinatesystems_xsd Drilldown into csID in schema coordinatesystems_xsd Drilldown into csName in schema coordinatesystems_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCoordinateSystemBaseType in schema coordinatesystems_xsd Drilldown into AbstractCoordinateSystemType in schema coordinatesystems_xsdXSD Diagram of VerticalCSType in schema coordinatesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="VerticalCSType">
    <annotation>
        <documentation>A one-dimensional coordinate system used to record the heights (or depths) of points. Such a coordinate system is usually dependent on the Earth's gravity field, perhaps loosely as when atmospheric pressure is the basis for the vertical coordinate system axis. The VerticalCSType shall have one usesAxis association. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoordinateSystemType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
remarks gml:remarks 0 (1)
csName gml:csName (1) (1)
csID gml:csID 0 unbounded
usesAxis gml:usesAxis (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:VerticalCS
