Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractCoordinateSystemType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateSystemBaseType
Containing Schema: coordinateSystems.xsd
Abstract True
Documentation:
A coordinate system (CS) is the set of coordinate system axes that spans a given coordinate space. A CS is derived from a set of (mathematical) rules for specifying how coordinates in a given space are to be assigned to points. The coordinate values in a coordinate tuple shall be recorded in the order in which the coordinate system axes associations are recorded, whenever those coordinates use a coordinate reference system that uses this coordinate system, and no other specification of axis order is provided. This abstract complexType shall not be used, extended, or restricted, in an Application Schema, to define a concrete subtype with a meaning equivalent to a concrete subtype specified in this document.

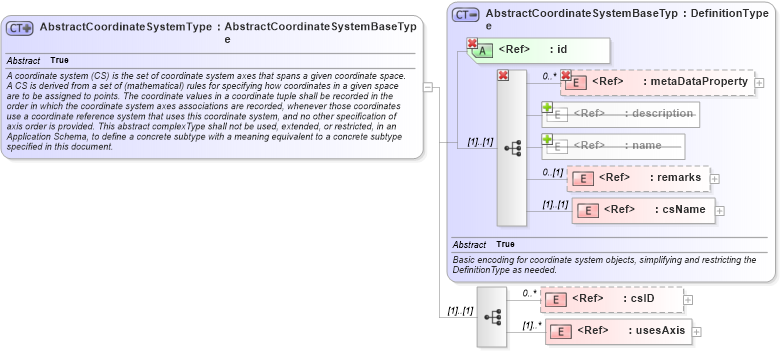

Collapse XSD Schema Diagram:
Drilldown into usesAxis in schema coordinatesystems_xsd Drilldown into csID in schema coordinatesystems_xsd Drilldown into csName in schema coordinatesystems_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCoordinateSystemBaseType in schema coordinatesystems_xsdXSD Diagram of AbstractCoordinateSystemType in schema coordinatesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractCoordinateSystemType" abstract="true">
    <annotation>
        <documentation>A coordinate system (CS) is the set of coordinate system axes that spans a given coordinate space. A CS is derived from a set of (mathematical) rules for specifying how coordinates in a given space are to be assigned to points. The coordinate values in a coordinate tuple shall be recorded in the order in which the coordinate system axes associations are recorded, whenever those coordinates use a coordinate reference system that uses this coordinate system, and no other specification of axis order is provided. This abstract complexType shall not be used, extended, or restricted, in an Application Schema, to define a concrete subtype with a meaning equivalent to a concrete subtype specified in this document. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoordinateSystemBaseType">
            <sequence>
                <element ref="gml:csID" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:usesAxis" maxOccurs="unbounded" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
remarks gml:remarks 0 (1)
csName gml:csName (1) (1)
csID gml:csID 0 unbounded
usesAxis gml:usesAxis (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:_CoordinateSystemgml:CartesianCSType, gml:CylindricalCSType, gml:EllipsoidalCSType, gml:LinearCSType, gml:ObliqueCartesianCSType, gml:PolarCSType, gml:SphericalCSType, gml:TemporalCSType, gml:UserDefinedCSType, gml:VerticalCSType,
