Documentation for Geography Markup Language
Definition Type: ComplexType
Name: DirectedObservationType
Namespace: http://www.opengis.net/gml
Type: gml:ObservationType
Containing Schema: observation.xsd
Abstract

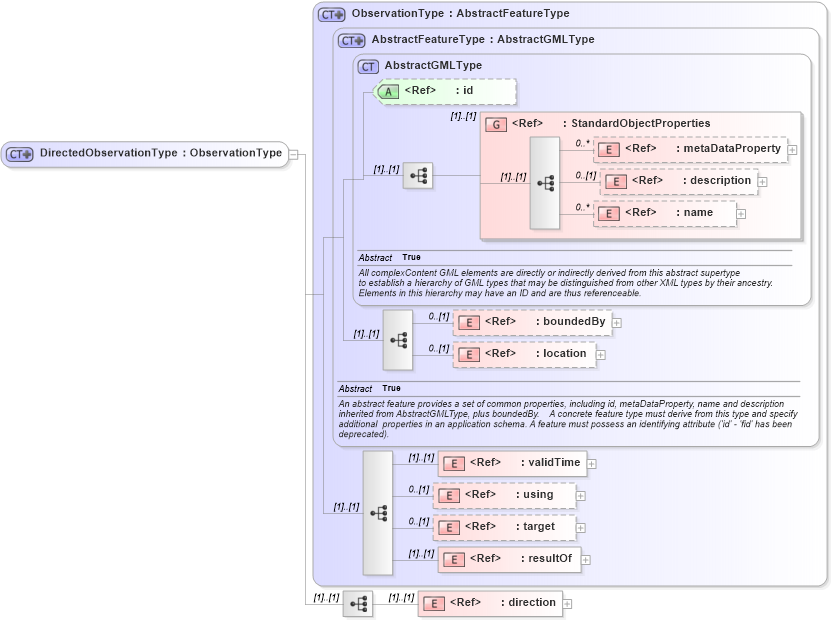

Collapse XSD Schema Diagram:
Drilldown into direction in schema direction_xsd Drilldown into resultOf in schema observation_xsd Drilldown into target in schema observation_xsd Drilldown into using in schema observation_xsd Drilldown into validTime in schema temporal_xsd Drilldown into location in schema feature_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractFeatureType in schema feature_xsd Drilldown into ObservationType in schema observation_xsdXSD Diagram of DirectedObservationType in schema observation_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="DirectedObservationType">
    <complexContent>
        <extension base="gml:ObservationType">
            <sequence>
                <element ref="gml:direction" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
validTime gml:validTime (1) (1)
using gml:using 0 (1)
target gml:target 0 (1)
resultOf gml:resultOf (1) (1)
direction gml:direction (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:DirectedObservationgml:DirectedObservationAtDistanceType,
