Documentation for Geography Markup Language
Definition Type: ComplexType
Name: GridCoverageType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractDiscreteCoverageType
Containing Schema: coverage.xsd
Abstract

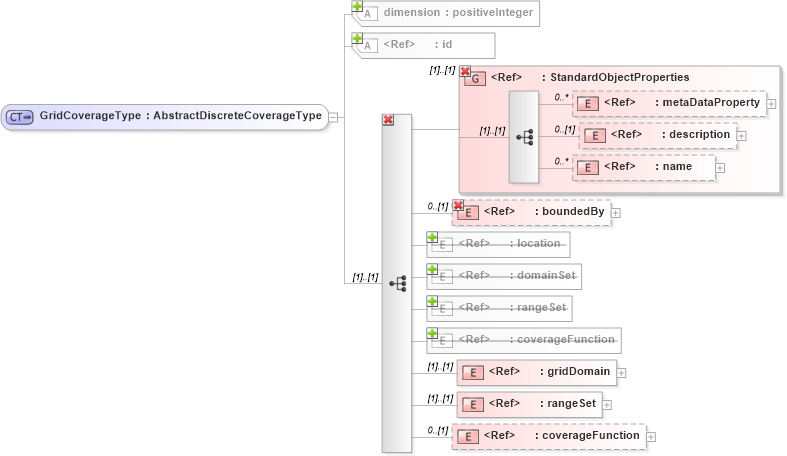

Collapse XSD Schema Diagram:
Drilldown into coverageFunction in schema coverage_xsd Drilldown into rangeSet in schema coverage_xsd Drilldown into gridDomain in schema coverage_xsd Drilldown into coverageFunction in schema coverage_xsd Drilldown into rangeSet in schema coverage_xsd Drilldown into domainSet in schema coverage_xsd Drilldown into location in schema feature_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into dimension in schema coverage_xsdXSD Diagram of GridCoverageType in schema coverage_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GridCoverageType">
    <complexContent>
        <restriction base="gml:AbstractDiscreteCoverageType">
            <sequence>
                <group ref="gml:StandardObjectProperties" />
                <element ref="gml:boundedBy" minOccurs="0" />
                <element ref="gml:gridDomain" />
                <element ref="gml:rangeSet" />
                <element ref="gml:coverageFunction" minOccurs="0" />
            </sequence>
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
boundedBy gml:boundedBy 0 (1)
gridDomain gml:gridDomain (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
dimension gml:dimension Optional
Collapse Derivation Tree:
Collapse References:
gml:GridCoverage
