Definition Type: ComplexType
Name: AbstractDiscreteCoverageType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoverageType
Containing Schema: coverage.xsd
Abstract True
Documentation:
A discrete coverage consists of a domain set, range set and optionally a coverage function. The domain set consists of either geometry or temporal objects, finite in number. The range set is comprised of a finite number of attribute values each of which is associated to every direct position within any single spatiotemporal object in the domain. In other words, the range values are constant on each spatiotemporal object in the domain. This coverage function maps each element from the coverage domain to an element in its range. This definition conforms to ISO 19123.

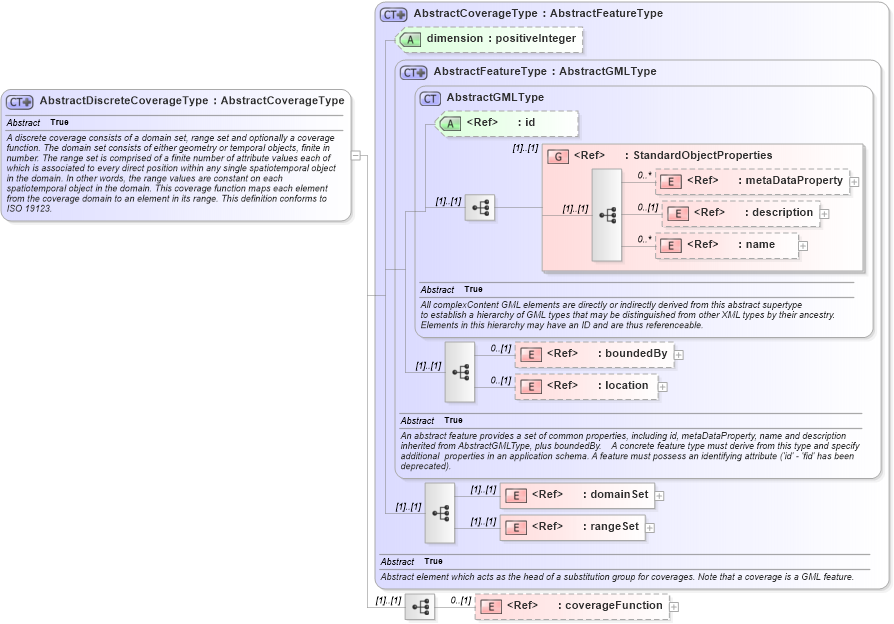

Collapse XSD Schema Diagram:
Drilldown into coverageFunction in schema coverage_xsd Drilldown into rangeSet in schema coverage_xsd Drilldown into domainSet in schema coverage_xsd Drilldown into location in schema feature_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractFeatureType in schema feature_xsd Drilldown into dimension in schema coverage_xsd Drilldown into AbstractCoverageType in schema coverage_xsdXSD Diagram of AbstractDiscreteCoverageType in schema coverage_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractDiscreteCoverageType" abstract="true">
    <annotation>
        <documentation>A discrete coverage consists of a domain set, range set and optionally a coverage function. The domain set consists of either geometry or temporal objects, finite in number. The range set is comprised of a finite number of attribute values each of which is associated to every direct position within any single spatiotemporal object in the domain. In other words, the range values are constant on each spatiotemporal object in the domain. This coverage function maps each element from the coverage domain to an element in its range. This definition conforms to ISO 19123.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoverageType">
            <sequence>
                <element ref="gml:coverageFunction" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
dimension gml:dimension Optional
Collapse Derivation Tree:
Collapse References:
gml:_DiscreteCoveragegml:GridCoverageType, gml:MultiCurveCoverageType, gml:MultiPointCoverageType, gml:MultiSolidCoverageType, gml:MultiSurfaceCoverageType, gml:RectifiedGridCoverageType,
