Documentation for Geography Markup Language
Definition Type: Element
Name: referenceFrame
Namespace: http://www.opengis.net/gml
Type: gml:TimeCalendarEraPropertyType
Containing Schema: temporalReferenceSystems.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Link to the CalendarEras that it uses as a reference for dating.

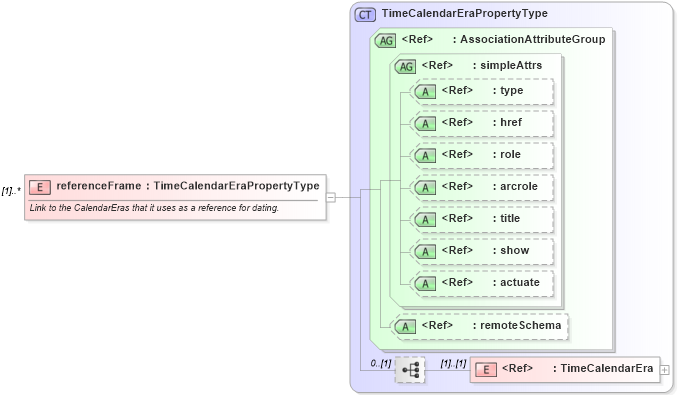

Collapse XSD Schema Diagram:
Drilldown into TimeCalendarEra in schema temporalreferencesystems_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into TimeCalendarEraPropertyType in schema temporalreferencesystems_xsdXSD Diagram of referenceFrame in schema temporalreferencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="referenceFrame" type="gml:TimeCalendarEraPropertyType" maxOccurs="unbounded">
    <annotation>
        <documentation>Link to the CalendarEras that it uses as a reference for dating.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TimeCalendarEra gml:TimeCalendarEra (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
