Documentation for Geography Markup Language
Definition Type: Element
Name: AbstractGeneralConversion
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractGeneralConversionType
Containing Schema: coordinateOperations.xsd
Abstract True
Documentation:
gm:AbstractGeneralConversion is an abstract operation on coordinates that does not include any change of datum. The best-known example of a coordinate conversion is a map projection. The parameters describing coordinate conversions are defined rather than empirically derived. Note that some conversions have no parameters. The operationVersion, sourceCRS, and targetCRS elements are omitted in a coordinate conversion. This abstract complex type is expected to be extended for well-known operation methods with many Conversion instances, in GML Application Schemas that define operation-method-specialized element names and contents. This conversion uses an operation method, usually with associated parameter values. However, operation methods and parameter values are directly associated with concrete subtypes, not with this abstract type. All concrete types derived from this type shall extend this type to include a "usesMethod" element that references the "OperationMethod" element. Similarly, all concrete types derived from this type shall extend this type to include zero or more elements each named "uses...Value" that each use the type of an element substitutable for the "AbstractGeneralParameterValue" element.

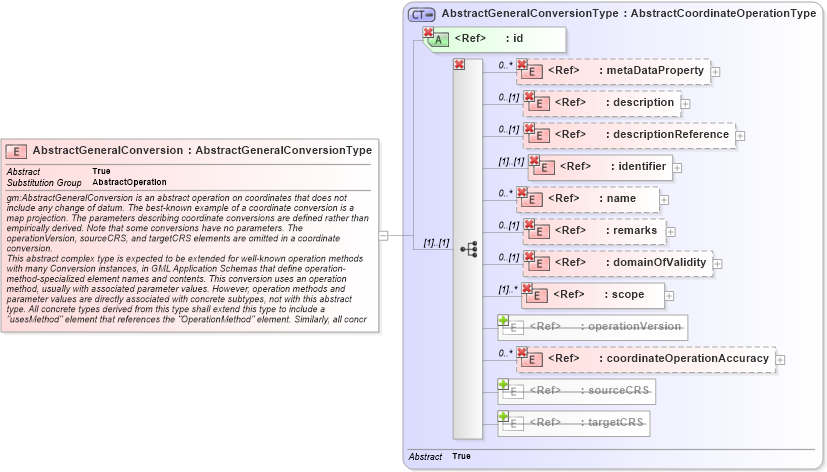

Collapse XSD Schema Diagram:
Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into coordinateOperationAccuracy in schema coordinateoperations_xsd Drilldown into operationVersion in schema coordinateoperations_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into domainOfValidity in schema referencesystems_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGeneralConversionType in schema coordinateoperations_xsdXSD Diagram of AbstractGeneralConversion in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="AbstractGeneralConversion" type="gml:AbstractGeneralConversionType" abstract="true" substitutionGroup="gml:AbstractOperation">
    <annotation>
        <documentation>gm:AbstractGeneralConversion is an abstract operation on coordinates that does not include any change of datum. The best-known example of a coordinate conversion is a map projection. The parameters describing coordinate conversions are defined rather than empirically derived. Note that some conversions have no parameters. The operationVersion, sourceCRS, and targetCRS elements are omitted in a coordinate conversion.
This abstract complex type is expected to be extended for well-known operation methods with many Conversion instances, in GML Application Schemas that define operation-method-specialized element names and contents. This conversion uses an operation method, usually with associated parameter values. However, operation methods and parameter values are directly associated with concrete subtypes, not with this abstract type. All concrete types derived from this type shall extend this type to include a "usesMethod" element that references the "OperationMethod" element. Similarly, all concrete types derived from this type shall extend this type to include zero or more elements each named "uses...Value" that each use the type of an element substitutable for the "AbstractGeneralParameterValue" element.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion 0 (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractOperation
