Documentation for Geography Markup Language
Definition Type: Element
Name: CompositeCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CompositeCurveType
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
A gml:CompositeCurve is represented by a sequence of (orientable) curves such that each curve in the sequence terminates at the start point of the subsequent curve in the list. curveMember references or contains inline one curve in the composite curve. The curves are contiguous, the collection of curves is ordered. Therefore, if provided, the aggregationType attribute shall have the value "sequence".

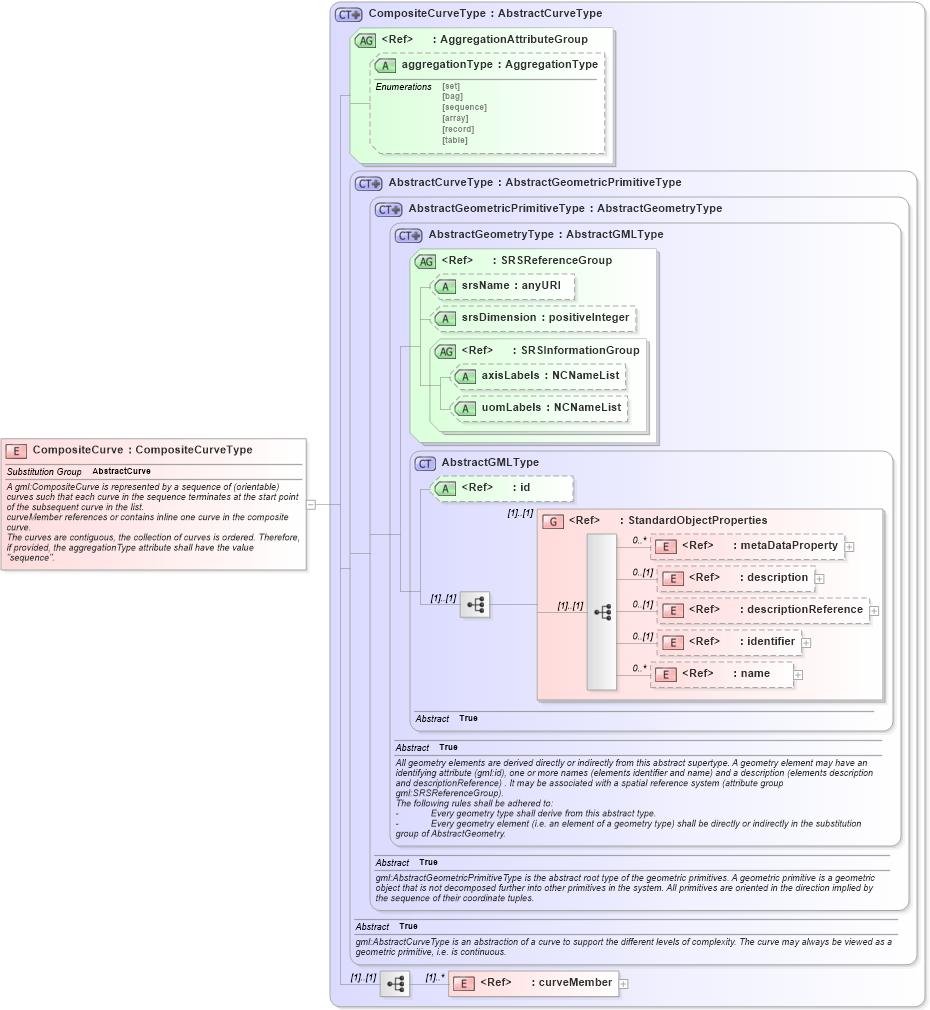

Collapse XSD Schema Diagram:
Drilldown into curveMember in schema geometryprimitives_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractCurveType in schema geometrybasic0d1d_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsd Drilldown into CompositeCurveType in schema geometrycomplexes_xsdXSD Diagram of CompositeCurve in schema geometrycomplexes_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="CompositeCurve" type="gml:CompositeCurveType" substitutionGroup="gml:AbstractCurve">
    <annotation>
        <documentation>A gml:CompositeCurve is represented by a sequence of (orientable) curves such that each curve in the sequence terminates at the start point of the subsequent curve in the list.
curveMember references or contains inline one curve in the composite curve.
The curves are contiguous, the collection of curves is ordered. Therefore, if provided, the aggregationType attribute shall have the value "sequence".</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
curveMember gml:curveMember (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurve
