Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractGeometricPrimitiveType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractGeometryType
Containing Schema: geometryBasic0d1d.xsd
Abstract True
Documentation:
gml:AbstractGeometricPrimitiveType is the abstract root type of the geometric primitives. A geometric primitive is a geometric object that is not decomposed further into other primitives in the system. All primitives are oriented in the direction implied by the sequence of their coordinate tuples.

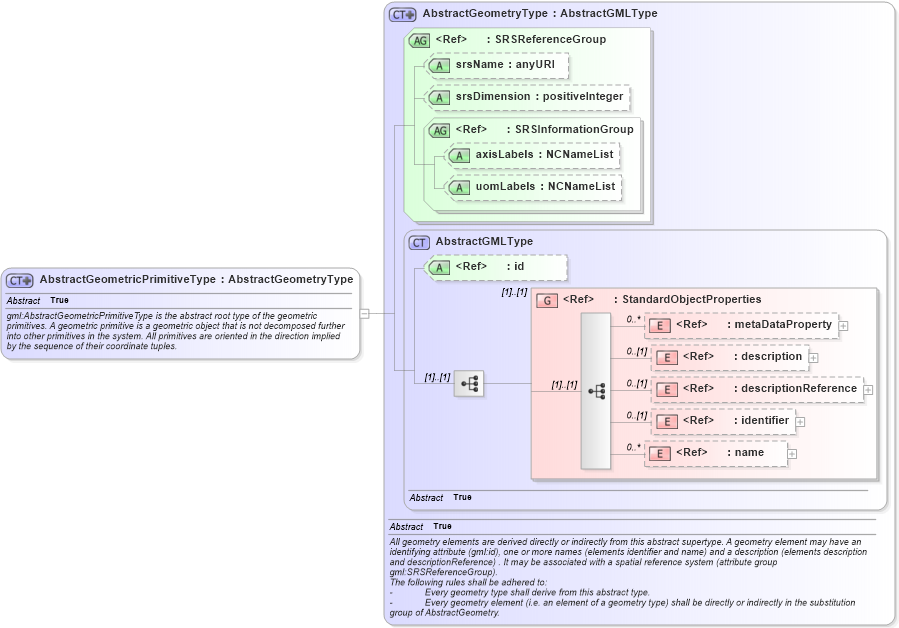

Collapse XSD Schema Diagram:
Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsdXSD Diagram of AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractGeometricPrimitiveType" abstract="true">
    <annotation>
        <documentation>gml:AbstractGeometricPrimitiveType is the abstract root type of the geometric primitives. A geometric primitive is a geometric object that is not decomposed further into other primitives in the system. All primitives are oriented in the direction implied by the sequence of their coordinate tuples.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGeometryType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurveType, gml:AbstractGeometricPrimitive, gml:AbstractSolidTypegml:AbstractSurfaceType, gml:PointType,
