Documentation for Geography Markup Language
Definition Type: Element
Name: SimplePolygon
Namespace: http://www.opengis.net/gml/3.3/ce
Type: gmlce:SimplePolygonType
Containing Schema: geometryCompact.xsd
Abstract
Documentation:
A SimplePolygon is a specialized polygon that has a simplified encoding of the logically equivalent GML 3.2 Surface with a single GML 3.2 PolygonPatch as its surface patch consisting of a single LinearRing as its exterior boundary and does not have any interior boundary. Thus the usage of the term 'simple' here refers to a specialized polygon with a _simplified_ encoding, which is _simply_ connected (no interior rings) and uses a _simple_ closed curve (no self-crossings) to represent its single boundary ring.

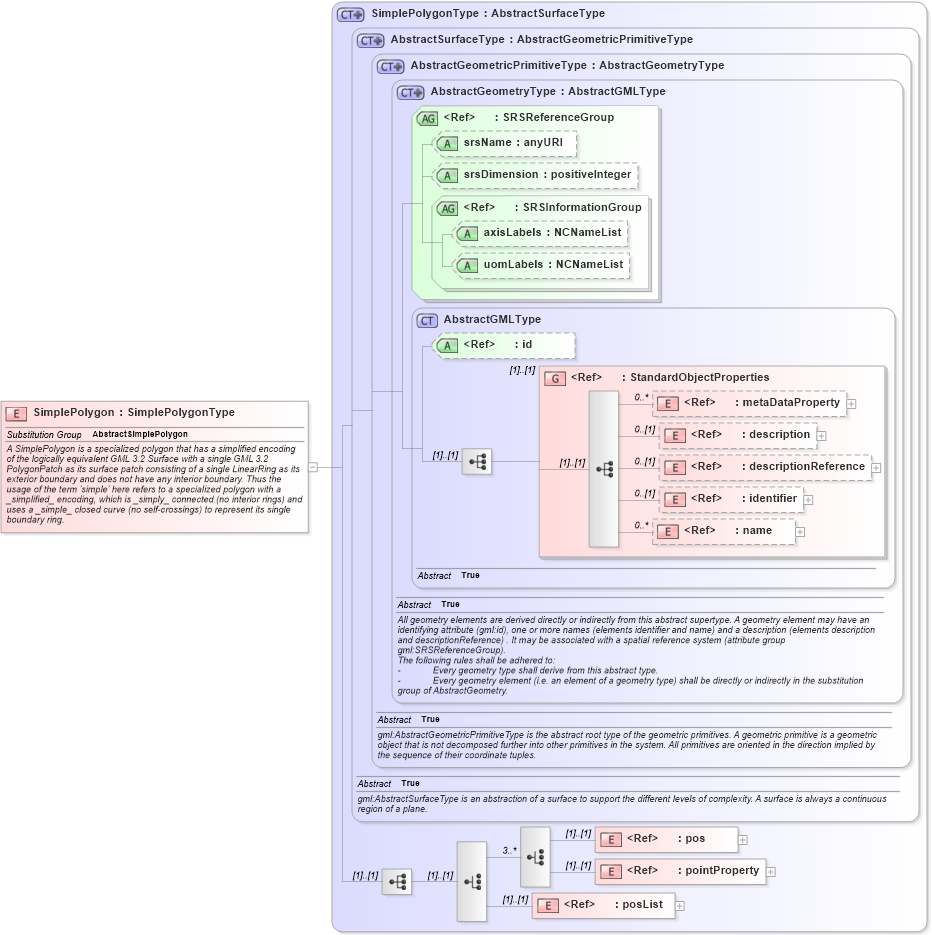

Collapse XSD Schema Diagram:
Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractSurfaceType in schema geometrybasic2d_xsd Drilldown into SimplePolygonType in schema geometrycompact_xsdXSD Diagram of SimplePolygon in schema geometrycompact_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="SimplePolygon" type="gmlce:SimplePolygonType" substitutionGroup="gmlce:AbstractSimplePolygon">
    <annotation>
        <documentation>A SimplePolygon is a specialized polygon that has a simplified encoding of the logically equivalent GML 3.2 Surface with a single GML 3.2 PolygonPatch as its surface patch consisting of a single LinearRing as its exterior boundary and does not have any interior boundary. Thus the usage of the term 'simple' here refers to a specialized polygon with a _simplified_ encoding, which is _simply_ connected (no interior rings) and uses a _simple_ closed curve (no self-crossings) to represent its single boundary ring.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
posList gml:posList (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gmlce:AbstractSimplePolygon
