Documentation for Geography Markup Language
Definition Type: ComplexType
Name: SimpleArcByBulgeType
Namespace: http://www.opengis.net/gml/3.3/ce
Type: gml:AbstractCurveType
Containing Schema: geometryCompact.xsd
Abstract

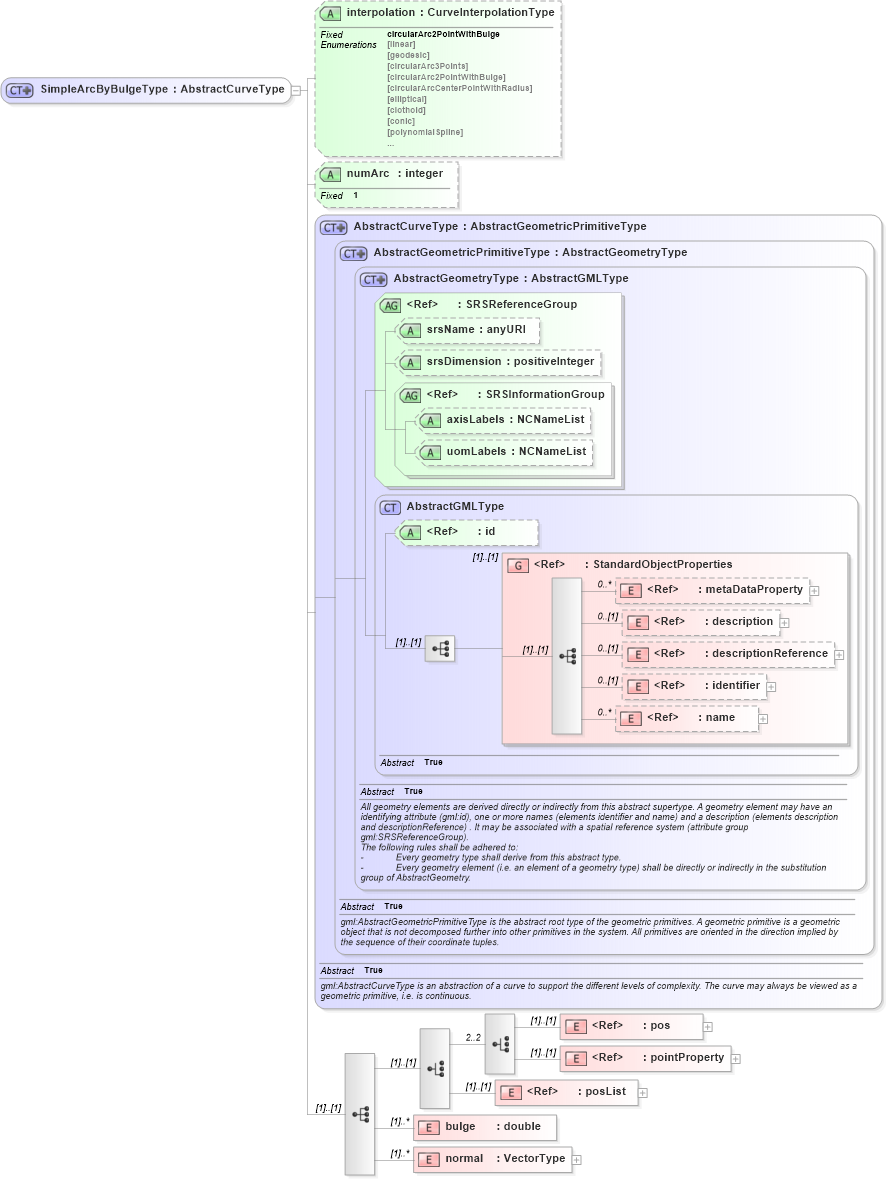

Collapse XSD Schema Diagram:
Drilldown into normal in schema geometrycompact_xsd Drilldown into bulge in schema geometrycompact_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractCurveType in schema geometrybasic0d1d_xsd Drilldown into numArc in schema geometrycompact_xsd Drilldown into interpolation in schema geometrycompact_xsdXSD Diagram of SimpleArcByBulgeType in schema geometrycompact_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="SimpleArcByBulgeType">
    <complexContent>
        <extension base="gml:AbstractCurveType">
            <sequence>
                <choice>
                    <choice minOccurs="2" maxOccurs="2">
                        <element ref="gml:pos" />
                        <element ref="gml:pointProperty" />
                    </choice>
                    <element ref="gml:posList" />
                </choice>
                <element name="bulge" type="double" maxOccurs="unbounded" />
                <element name="normal" type="gml:VectorType" maxOccurs="unbounded" />
            </sequence>
            <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArc2PointWithBulge" />
            <attribute name="numArc" type="integer" fixed="1" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
posList gml:posList (1) (1)
bulge gmlce:bulge (1) unbounded
normal gmlce:normal (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
interpolation gmlce:interpolation (Optional)
numArc gmlce:numArc (Optional)
Collapse Derivation Tree:
Collapse References:
gmlce:SimpleArcByBulge
