Definition Type: Element
Name: directedNode
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectedNodePropertyType
Containing Schema: topology.xsd
Abstract
Documentation:
A gml:directedNode property element describes the boundary of topology edges and is used in the support of topological point features via the gml:TopoPoint expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included node is used: start ("-") or end ("+") node.

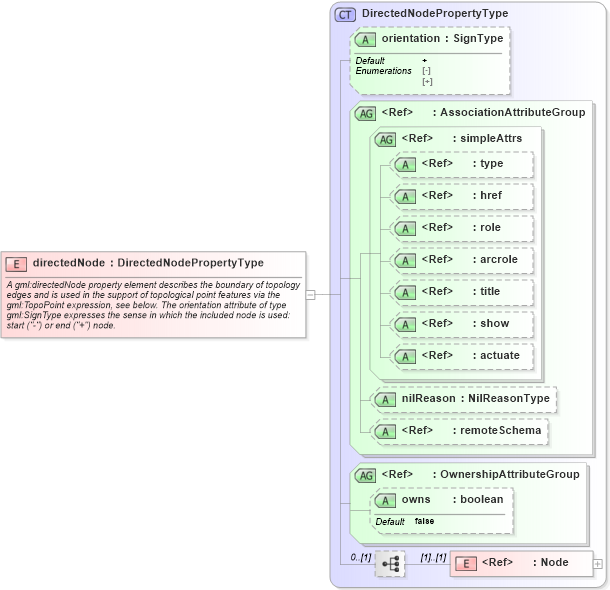

Collapse XSD Schema Diagram:
Drilldown into Node in schema topology_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into orientation in schema topology_xsd Drilldown into DirectedNodePropertyType in schema topology_xsdXSD Diagram of directedNode in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="directedNode" type="gml:DirectedNodePropertyType">
    <annotation>
        <documentation>A gml:directedNode property element describes the boundary of topology edges and is used in the support of topological point features via the gml:TopoPoint expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included node is used: start ("-") or end ("+") node.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Node gml:Node (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
orientation gml:orientation + (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
