Documentation for Geography Markup Language
Definition Type: Element
Name: Node
Namespace: http://www.opengis.net/gml/3.2
Type: gml:NodeType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:Node represents the 0-dimensional primitive. The optional coboundary of a node (gml:directedEdge) is a sequence of directed edges which are incident on this node. Edges emanating from this node appear in the node coboundary with a negative orientation. If provided, the aggregationType attribute shall have the value "sequence". A node may optionally be realised by a 0-dimensional geometric primitive (gml:pointProperty).

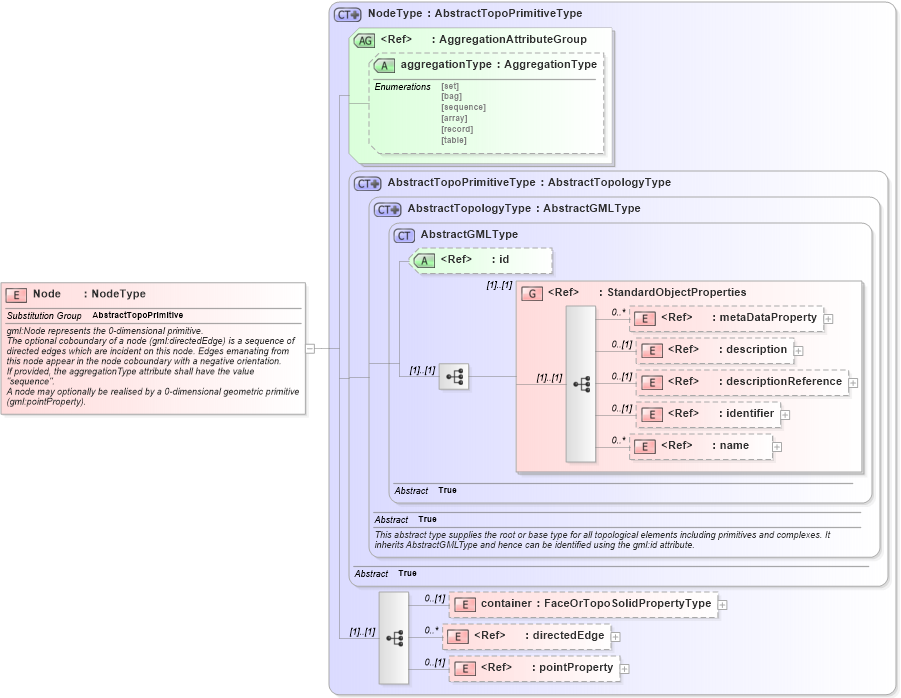

Collapse XSD Schema Diagram:
Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into directedEdge in schema topology_xsd Drilldown into container in schema topology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTopologyType in schema topology_xsd Drilldown into AbstractTopoPrimitiveType in schema topology_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsd Drilldown into NodeType in schema topology_xsdXSD Diagram of Node in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="Node" type="gml:NodeType" substitutionGroup="gml:AbstractTopoPrimitive">
    <annotation>
        <documentation>gml:Node represents the 0-dimensional primitive.
The optional coboundary of a node (gml:directedEdge) is a sequence of directed edges which are incident on this node. Edges emanating from this node appear in the node coboundary with a negative orientation.
If provided, the aggregationType attribute shall have the value "sequence".
A node may optionally be realised by a 0-dimensional geometric primitive (gml:pointProperty).</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
container gml:container 0 (1)
directedEdge gml:directedEdge 0 unbounded
pointProperty gml:pointProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTopoPrimitive
