Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractTopologyType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractGMLType
Containing Schema: topology.xsd
Abstract True
Documentation:
This abstract type supplies the root or base type for all topological elements including primitives and complexes. It inherits AbstractGMLType and hence can be identified using the gml:id attribute.

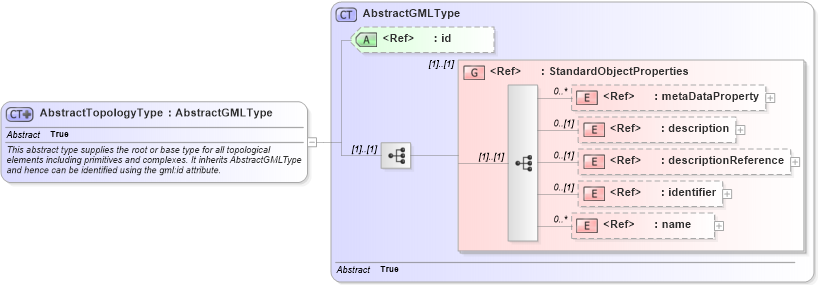

Collapse XSD Schema Diagram:
Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsdXSD Diagram of AbstractTopologyType in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractTopologyType" abstract="true">
    <annotation>
        <documentation>This abstract type supplies the root or base type for all topological elements including primitives and complexes. It inherits AbstractGMLType and hence can be identified using the gml:id attribute.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGMLType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTopologygml:AbstractTopoPrimitiveType, gml:TopoComplexType, gml:TopoCurveType, gml:TopoPointType, gml:TopoSurfaceType, gml:TopoVolumeType,
