Definition Type: ComplexType
Name: EdgeType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractTopoPrimitiveType
Containing Schema: topology.xsd
Abstract

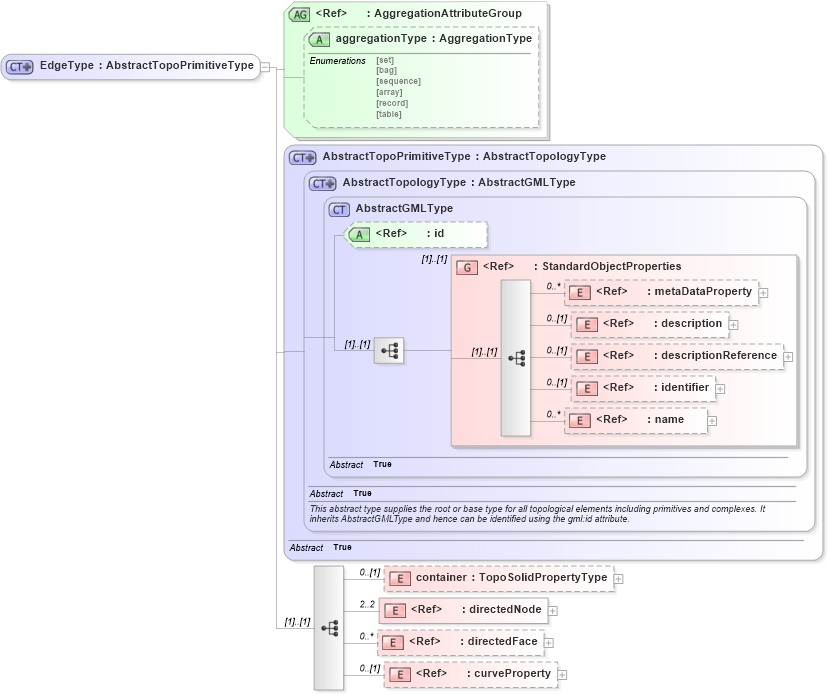

Collapse XSD Schema Diagram:
Drilldown into curveProperty in schema geometrybasic0d1d_xsd Drilldown into directedFace in schema topology_xsd Drilldown into directedNode in schema topology_xsd Drilldown into container in schema topology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTopologyType in schema topology_xsd Drilldown into AbstractTopoPrimitiveType in schema topology_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsdXSD Diagram of EdgeType in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="EdgeType">
    <complexContent>
        <extension base="gml:AbstractTopoPrimitiveType">
            <sequence>
                <element name="container" type="gml:TopoSolidPropertyType" minOccurs="0" />
                <element ref="gml:directedNode" minOccurs="2" maxOccurs="2" />
                <element ref="gml:directedFace" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:curveProperty" minOccurs="0" />
            </sequence>
            <attributeGroup ref="gml:AggregationAttributeGroup" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
container gml:container 0 (1)
directedNode gml:directedNode 2 2
directedFace gml:directedFace 0 unbounded
curveProperty gml:curveProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Edge
