Definition Type: Element
Name: Edge
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EdgeType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:Edge represents the 1-dimensional primitive. The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node. The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-". If provided, the aggregationType attribute shall have the value "sequence". An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).
Collapse XSD Schema Diagram:

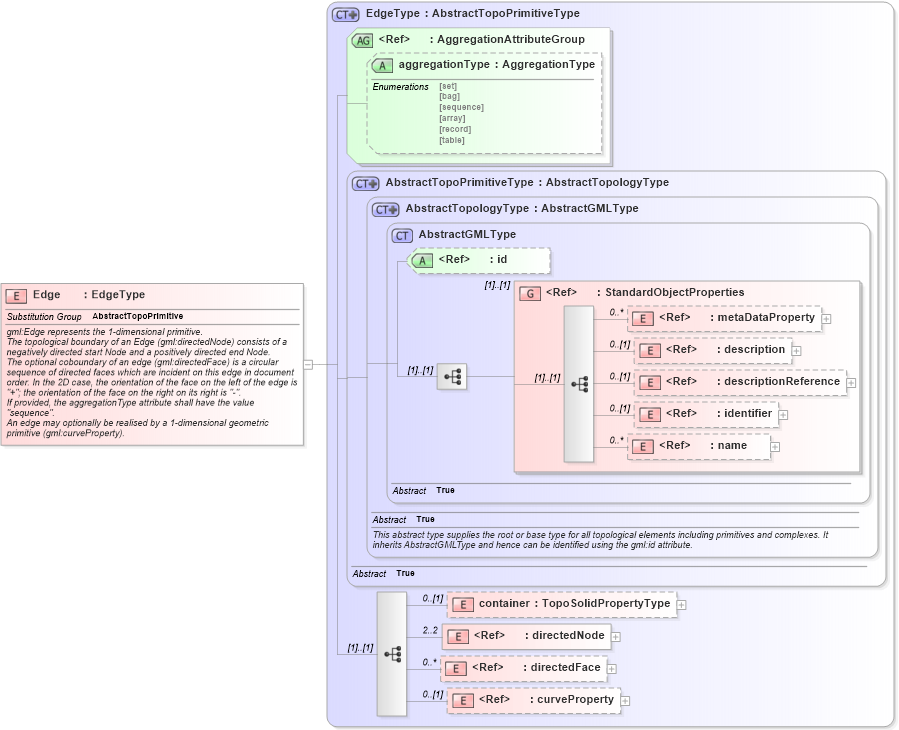

Drilldown into curveProperty in schema geometrybasic0d1d_xsd Drilldown into directedFace in schema topology_xsd Drilldown into directedNode in schema topology_xsd Drilldown into container in schema topology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTopologyType in schema topology_xsd Drilldown into AbstractTopoPrimitiveType in schema topology_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsd Drilldown into EdgeType in schema topology_xsdXSD Diagram of Edge in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="Edge" type="gml:EdgeType" substitutionGroup="gml:AbstractTopoPrimitive">
    <annotation>
        <documentation>gml:Edge represents the 1-dimensional primitive.
The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node.
The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-".
If provided, the aggregationType attribute shall have the value "sequence".
An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
container gml:container 0 (1)
directedNode gml:directedNode 2 2
directedFace gml:directedFace 0 unbounded
curveProperty gml:curveProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTopoPrimitive
