Documentation for Geography Markup Language
Definition Type: Element
Name: TopoCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TopoCurveType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:TopoCurve represents a homogeneous topological expression, a sequence of directed edges, which if realised are isomorphic to a geometric curve primitive. The intended use of gml:TopoCurve is to appear within a line feature to express the structural and geometric relationships of this feature to other features via the shared edge definitions. If provided, the aggregationType attribute shall have the value "sequence".

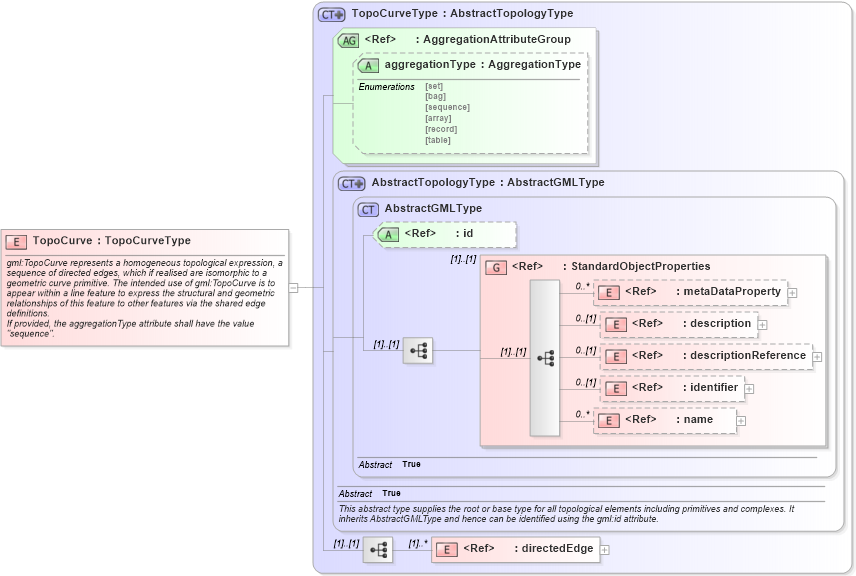

Collapse XSD Schema Diagram:
Drilldown into directedEdge in schema topology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTopologyType in schema topology_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsd Drilldown into TopoCurveType in schema topology_xsdXSD Diagram of TopoCurve in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="TopoCurve" type="gml:TopoCurveType">
    <annotation>
        <documentation>gml:TopoCurve represents a homogeneous topological expression, a sequence of directed edges, which if realised are isomorphic to a geometric curve primitive. The intended use of gml:TopoCurve is to appear within a line feature to express the structural and geometric relationships of this feature to other features via the shared edge definitions.
If provided, the aggregationType attribute shall have the value "sequence".</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
directedEdge gml:directedEdge (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
