Documentation for Geography Markup Language
Definition Type: Element
Name: direction
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectionPropertyType
Containing Schema: direction.xsd
Abstract
Documentation:
The property gml:direction is intended as a pre-defined property expressing a direction to be assigned to features defined in a GML application schema.

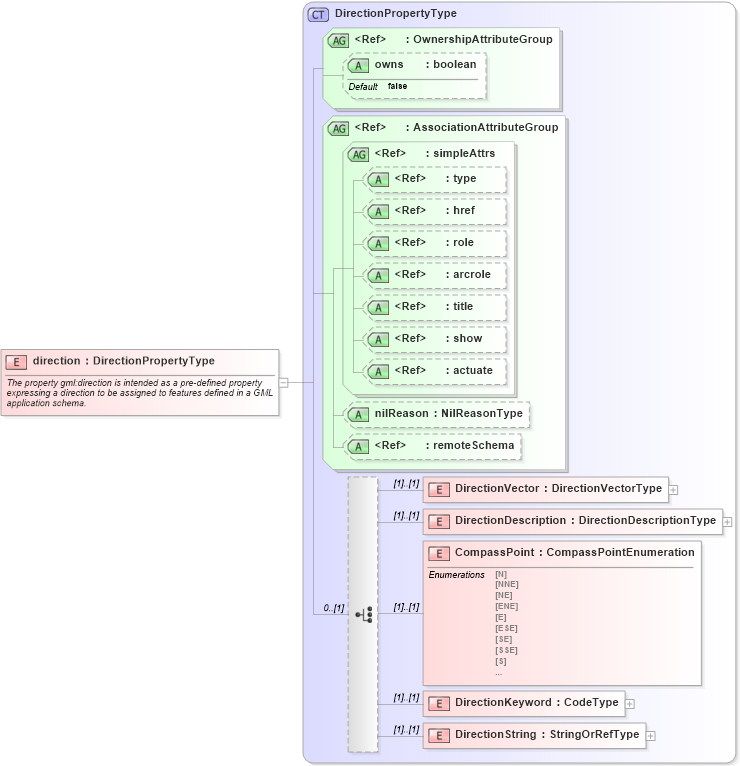

Collapse XSD Schema Diagram:
Drilldown into DirectionString in schema direction_xsd Drilldown into DirectionKeyword in schema direction_xsd Drilldown into CompassPoint in schema direction_xsd Drilldown into DirectionDescription in schema direction_xsd Drilldown into DirectionVector in schema direction_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsd Drilldown into DirectionPropertyType in schema direction_xsdXSD Diagram of direction in schema direction_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="direction" type="gml:DirectionPropertyType">
    <annotation>
        <documentation>The property gml:direction is intended as a pre-defined property expressing a direction to be assigned to features defined in a GML application schema.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DirectionVector gml:DirectionVector (1) (1)
DirectionDescription gml:DirectionDescription (1) (1)
CompassPoint gml:CompassPoint (1) (1)
DirectionKeyword gml:DirectionKeyword (1) (1)
DirectionString gml:DirectionString (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
