Documentation for Geography Markup Language
Definition Type: ComplexType
Name: DirectionPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: direction.xsd
Abstract

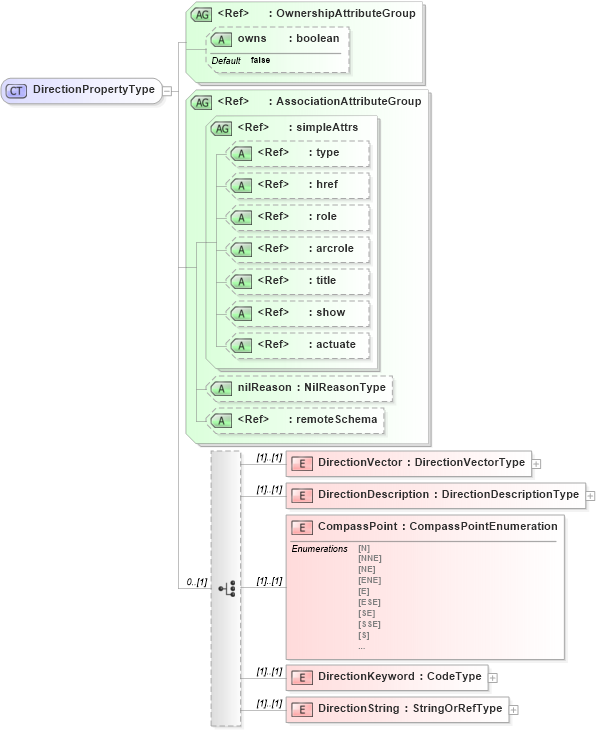

Collapse XSD Schema Diagram:
Drilldown into DirectionString in schema direction_xsd Drilldown into DirectionKeyword in schema direction_xsd Drilldown into CompassPoint in schema direction_xsd Drilldown into DirectionDescription in schema direction_xsd Drilldown into DirectionVector in schema direction_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsdXSD Diagram of DirectionPropertyType in schema direction_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="DirectionPropertyType">
    <choice minOccurs="0">
        <element name="DirectionVector" type="gml:DirectionVectorType" />
        <element name="DirectionDescription" type="gml:DirectionDescriptionType" />
        <element name="CompassPoint" type="gml:CompassPointEnumeration" />
        <element name="DirectionKeyword" type="gml:CodeType" />
        <element name="DirectionString" type="gml:StringOrRefType" />
    </choice>
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DirectionVector gml:DirectionVector (1) (1)
DirectionDescription gml:DirectionDescription (1) (1)
CompassPoint gml:CompassPoint (1) (1)
DirectionKeyword gml:DirectionKeyword (1) (1)
DirectionString gml:DirectionString (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:bearing, gml:direction
