Documentation for Geography Markup Language
Definition Type: ComplexType
Name: EnvelopeType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryBasic0d1d.xsd
Abstract

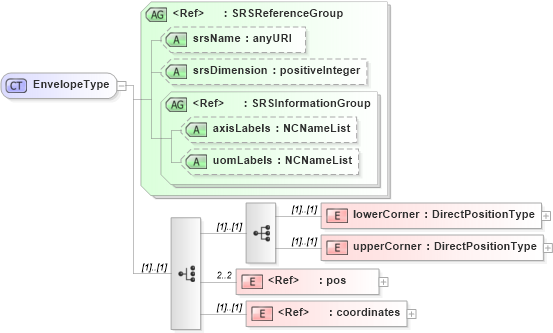

Collapse XSD Schema Diagram:
Drilldown into coordinates in schema deprecatedtypes_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into upperCorner in schema geometrybasic0d1d_xsd Drilldown into lowerCorner in schema geometrybasic0d1d_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsdXSD Diagram of EnvelopeType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="EnvelopeType">
    <choice>
        <sequence>
            <element name="lowerCorner" type="gml:DirectPositionType" />
            <element name="upperCorner" type="gml:DirectPositionType" />
        </sequence>
        <element ref="gml:pos" minOccurs="2" maxOccurs="2">
            <annotation>
                <appinfo>deprecated</appinfo>
            </annotation>
        </element>
        <element ref="gml:coordinates" />
    </choice>
    <attributeGroup ref="gml:SRSReferenceGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
lowerCorner gml:lowerCorner (1) (1)
upperCorner gml:upperCorner (1) (1)
pos gml:pos 2 2
coordinates gml:coordinates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Envelopegml:EnvelopeWithTimePeriodType,
