Documentation for Geography Markup Language
Definition Type: ComplexType
Name: EnvelopeWithTimePeriodType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EnvelopeType
Containing Schema: feature.xsd
Abstract

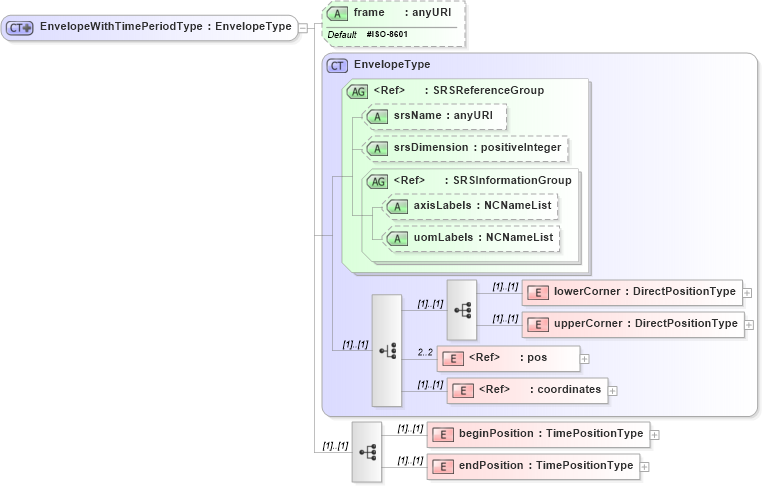

Collapse XSD Schema Diagram:
Drilldown into endPosition in schema feature_xsd Drilldown into beginPosition in schema feature_xsd Drilldown into coordinates in schema deprecatedtypes_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into upperCorner in schema geometrybasic0d1d_xsd Drilldown into lowerCorner in schema geometrybasic0d1d_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into EnvelopeType in schema geometrybasic0d1d_xsd Drilldown into frame in schema feature_xsdXSD Diagram of EnvelopeWithTimePeriodType in schema feature_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="EnvelopeWithTimePeriodType">
    <complexContent>
        <extension base="gml:EnvelopeType">
            <sequence>
                <element name="beginPosition" type="gml:TimePositionType" />
                <element name="endPosition" type="gml:TimePositionType" />
            </sequence>
            <attribute name="frame" type="anyURI" default="#ISO-8601" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
lowerCorner gml:lowerCorner (1) (1)
upperCorner gml:upperCorner (1) (1)
pos gml:pos 2 2
coordinates gml:coordinates (1) (1)
beginPosition gml:beginPosition (1) (1)
endPosition gml:endPosition (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
frame gml:frame #ISO-8601 (Optional)
Collapse Derivation Tree:
Collapse References:
gml:EnvelopeWithTimePeriod
