Documentation for Geography Markup Language
Definition Type: Element
Name: GeodesicString
Namespace: http://www.opengis.net/gml/3.2
Type: gml:GeodesicStringType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A sequence of geodesic segments. The number of control points shall be at least two. interpolation is fixed as "geodesic". The content model follows the general pattern for the encoding of curve segments.

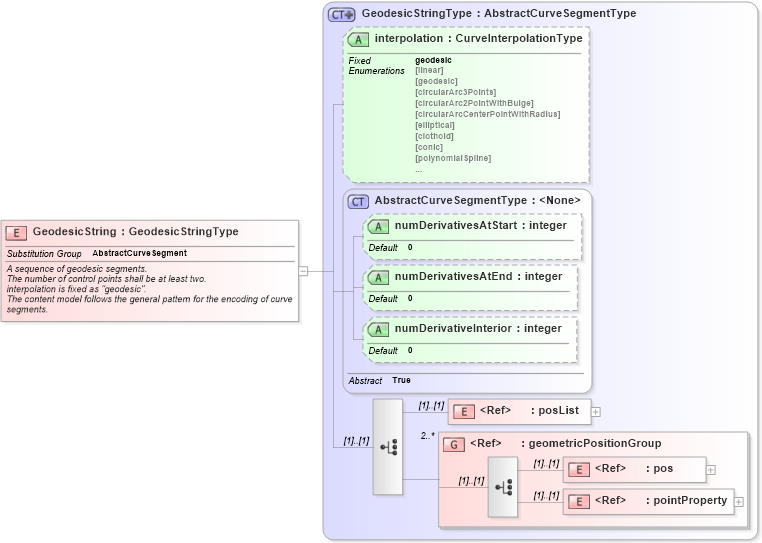

Collapse XSD Schema Diagram:
Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into geometricPositionGroup in schema geometrybasic0d1d_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into numDerivativeInterior in schema geometryprimitives_xsd Drilldown into numDerivativesAtEnd in schema geometryprimitives_xsd Drilldown into numDerivativesAtStart in schema geometryprimitives_xsd Drilldown into AbstractCurveSegmentType in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsd Drilldown into GeodesicStringType in schema geometryprimitives_xsdXSD Diagram of GeodesicString in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="GeodesicString" type="gml:GeodesicStringType" substitutionGroup="gml:AbstractCurveSegment">
    <annotation>
        <documentation>A sequence of geodesic segments.
The number of control points shall be at least two.
interpolation is fixed as "geodesic".
The content model follows the general pattern for the encoding of curve segments.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
posList gml:posList (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
<xs:group> gml:geometricPositionGroup 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurveSegment
