Documentation for Geography Markup Language
Definition Type: ComplexType
Name: GeodesicStringType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCurveSegmentType
Containing Schema: geometryPrimitives.xsd
Abstract

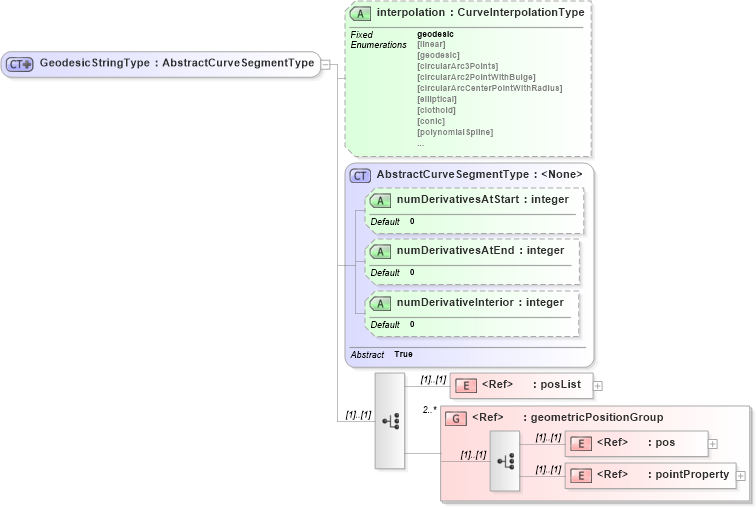

Collapse XSD Schema Diagram:
Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into geometricPositionGroup in schema geometrybasic0d1d_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into numDerivativeInterior in schema geometryprimitives_xsd Drilldown into numDerivativesAtEnd in schema geometryprimitives_xsd Drilldown into numDerivativesAtStart in schema geometryprimitives_xsd Drilldown into AbstractCurveSegmentType in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsdXSD Diagram of GeodesicStringType in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GeodesicStringType">
    <complexContent>
        <extension base="gml:AbstractCurveSegmentType">
            <choice>
                <element ref="gml:posList" />
                <group ref="gml:geometricPositionGroup" minOccurs="2" maxOccurs="unbounded" />
            </choice>
            <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="geodesic" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
posList gml:posList (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
<xs:group> gml:geometricPositionGroup 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:GeodesicStringgml:GeodesicType,
