Documentation for Geography Markup Language
Definition Type: ComplexType
Name: GeometricComplexPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
A property that has a geometric complex as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.

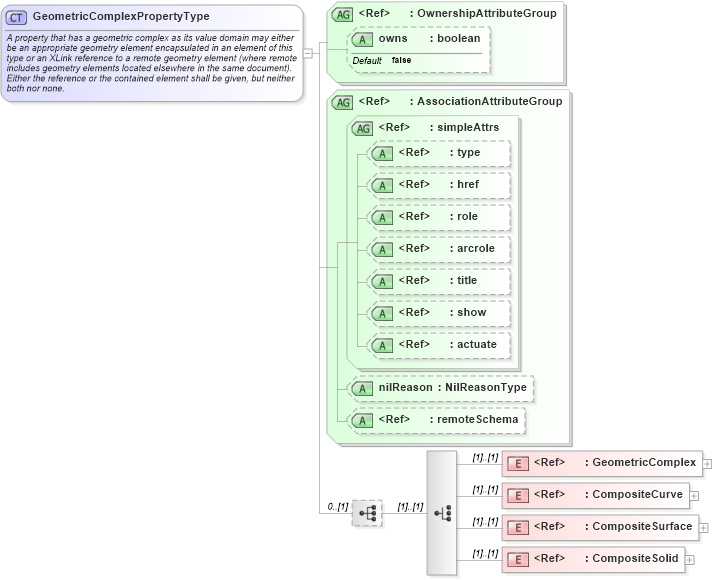

Collapse XSD Schema Diagram:
Drilldown into CompositeSolid in schema geometrycomplexes_xsd Drilldown into CompositeSurface in schema geometrycomplexes_xsd Drilldown into CompositeCurve in schema geometrycomplexes_xsd Drilldown into GeometricComplex in schema geometrycomplexes_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsdXSD Diagram of GeometricComplexPropertyType in schema geometrycomplexes_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GeometricComplexPropertyType">
    <annotation>
        <documentation>A property that has a geometric complex as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <choice>
            <element ref="gml:GeometricComplex" />
            <element ref="gml:CompositeCurve" />
            <element ref="gml:CompositeSurface" />
            <element ref="gml:CompositeSolid" />
        </choice>
    </sequence>
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GeometricComplex gml:GeometricComplex (1) (1)
CompositeCurve gml:CompositeCurve (1) (1)
CompositeSurface gml:CompositeSurface (1) (1)
CompositeSolid gml:CompositeSolid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
