Documentation for Geography Markup Language
Definition Type: Element
Name: GridCoverage
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DiscreteCoverageType
Containing Schema: coverage.xsd
Abstract
Documentation:
A gml:GriddedCoverage is a discrete point coverage in which the domain set is a geometric grid of points. Note that this is the same as the gml:MultiPointCoverage except that we have a gml:Grid to describe the domain. The simple gridded coverage is not geometrically referenced and hence no geometric positions are assignable to the points in the grid. Such geometric positioning is introduced in the gml:RectifiedGridCoverage.

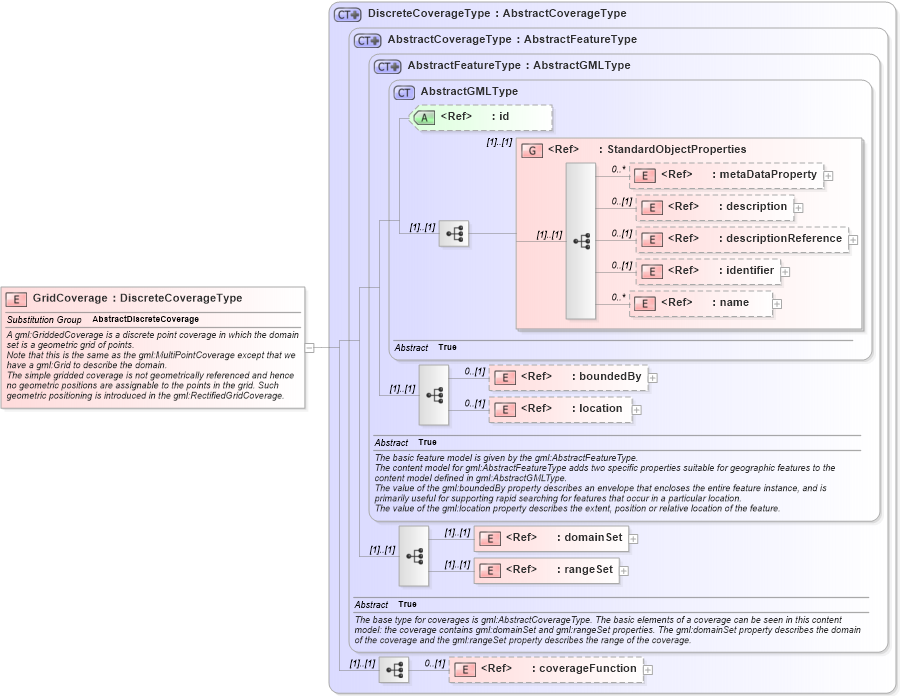

Collapse XSD Schema Diagram:
Drilldown into coverageFunction in schema coverage_xsd Drilldown into rangeSet in schema coverage_xsd Drilldown into domainSet in schema coverage_xsd Drilldown into location in schema deprecatedtypes_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractFeatureType in schema feature_xsd Drilldown into AbstractCoverageType in schema coverage_xsd Drilldown into DiscreteCoverageType in schema coverage_xsdXSD Diagram of GridCoverage in schema coverage_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="GridCoverage" type="gml:DiscreteCoverageType" substitutionGroup="gml:AbstractDiscreteCoverage">
    <annotation>
        <documentation>A gml:GriddedCoverage is a discrete point coverage in which the domain set is a geometric grid of points.
Note that this is the same as the gml:MultiPointCoverage except that we have a gml:Grid to describe the domain.
The simple gridded coverage is not geometrically referenced and hence no geometric positions are assignable to the points in the grid. Such geometric positioning is introduced in the gml:RectifiedGridCoverage.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractDiscreteCoverage
