Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractFeatureType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractGMLType
Containing Schema: feature.xsd
Abstract True
Documentation:
The basic feature model is given by the gml:AbstractFeatureType. The content model for gml:AbstractFeatureType adds two specific properties suitable for geographic features to the content model defined in gml:AbstractGMLType. The value of the gml:boundedBy property describes an envelope that encloses the entire feature instance, and is primarily useful for supporting rapid searching for features that occur in a particular location. The value of the gml:location property describes the extent, position or relative location of the feature.

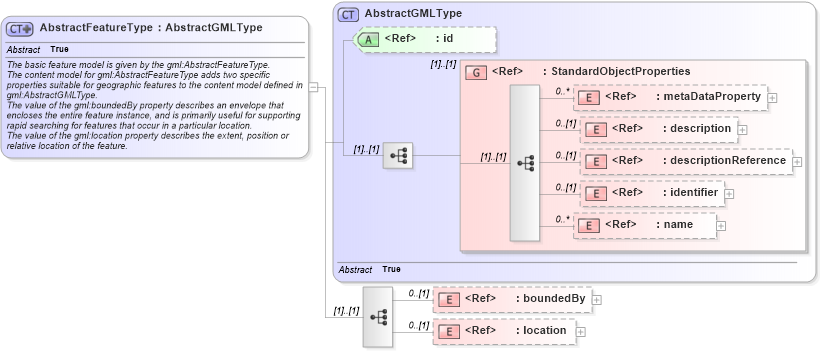

Collapse XSD Schema Diagram:
Drilldown into location in schema deprecatedtypes_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsdXSD Diagram of AbstractFeatureType in schema feature_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractFeatureType" abstract="true">
    <annotation>
        <documentation>The basic feature model is given by the gml:AbstractFeatureType.
The content model for gml:AbstractFeatureType adds two specific properties suitable for geographic features to the content model defined in gml:AbstractGMLType.
The value of the gml:boundedBy property describes an envelope that encloses the entire feature instance, and is primarily useful for supporting rapid searching for features that occur in a particular location.
The value of the gml:location property describes the extent, position or relative location of the feature.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGMLType">
            <sequence>
                <element ref="gml:boundedBy" minOccurs="0" />
                <element ref="gml:location" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCoverageType, gml:AbstractFeature, gml:AbstractFeatureCollectionType, gml:BoundedFeatureType, gml:DynamicFeatureType, gml:ObservationType, gmltin:TINElementType
