Definition Type: Element
Name: MultiCurveCoverage
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DiscreteCoverageType
Containing Schema: coverage.xsd
Abstract
Documentation:
In a gml:MultiCurveCoverage the domain is partioned into a collection of curves comprising a gml:MultiCurve. The coverage function then maps each curve in the collection to a value in the range set. The content model is identical with gml:DiscreteCoverageType, but that gml:domainSet shall have values gml:MultiCurve. In a gml:MultiCurveCoverage the mapping from the domain to the range is straightforward. - For gml:DataBlock encodings the curves of the gml:MultiCurve are mapped in document order to the tuples of the data block. - For gml:CompositeValue encodings the curves of the gml:MultiCurve are mapped to the members of the composite value in document order. - For gml:File encodings the curves of the gml:MultiCurve are mapped to the records of the file in sequential order.

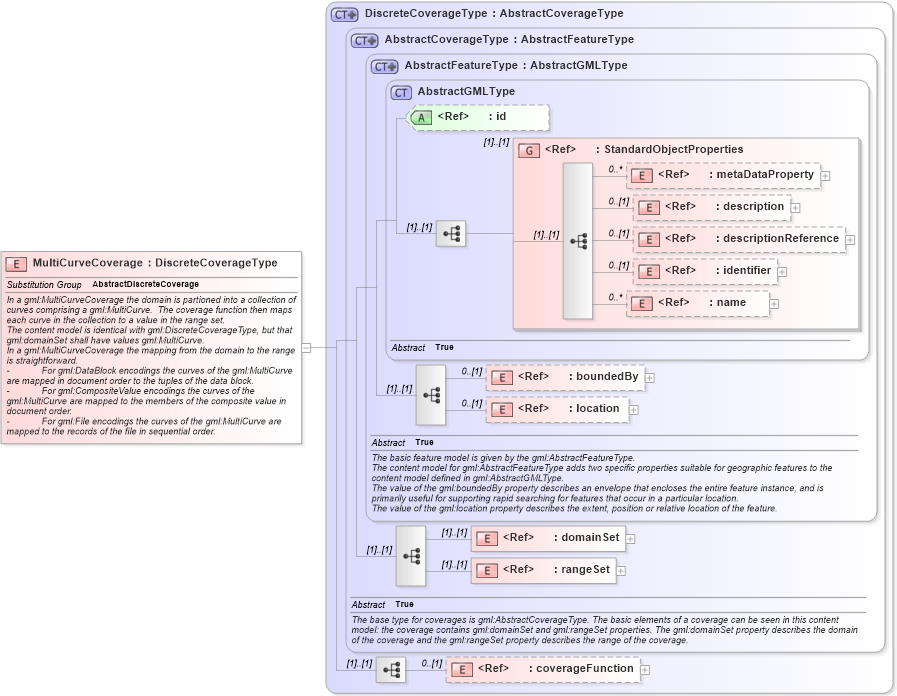

Collapse XSD Schema Diagram:
Drilldown into coverageFunction in schema coverage_xsd Drilldown into rangeSet in schema coverage_xsd Drilldown into domainSet in schema coverage_xsd Drilldown into location in schema deprecatedtypes_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractFeatureType in schema feature_xsd Drilldown into AbstractCoverageType in schema coverage_xsd Drilldown into DiscreteCoverageType in schema coverage_xsdXSD Diagram of MultiCurveCoverage in schema coverage_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="MultiCurveCoverage" type="gml:DiscreteCoverageType" substitutionGroup="gml:AbstractDiscreteCoverage">
    <annotation>
        <documentation>In a gml:MultiCurveCoverage the domain is partioned into a collection of curves comprising a gml:MultiCurve.  The coverage function then maps each curve in the collection to a value in the range set.
The content model is identical with gml:DiscreteCoverageType, but that gml:domainSet shall have values gml:MultiCurve.
In a gml:MultiCurveCoverage the mapping from the domain to the range is straightforward.
-	For gml:DataBlock encodings the curves of the gml:MultiCurve are mapped in document order to the tuples of the data block.
-	For gml:CompositeValue encodings the curves of the gml:MultiCurve are mapped to the members of the composite value in document order.
-	For gml:File encodings the curves of the gml:MultiCurve are mapped to the records of the file in sequential order.
</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractDiscreteCoverage
