Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ImageCRSType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCRSType
Containing Schema: coordinateReferenceSystems.xsd
Abstract

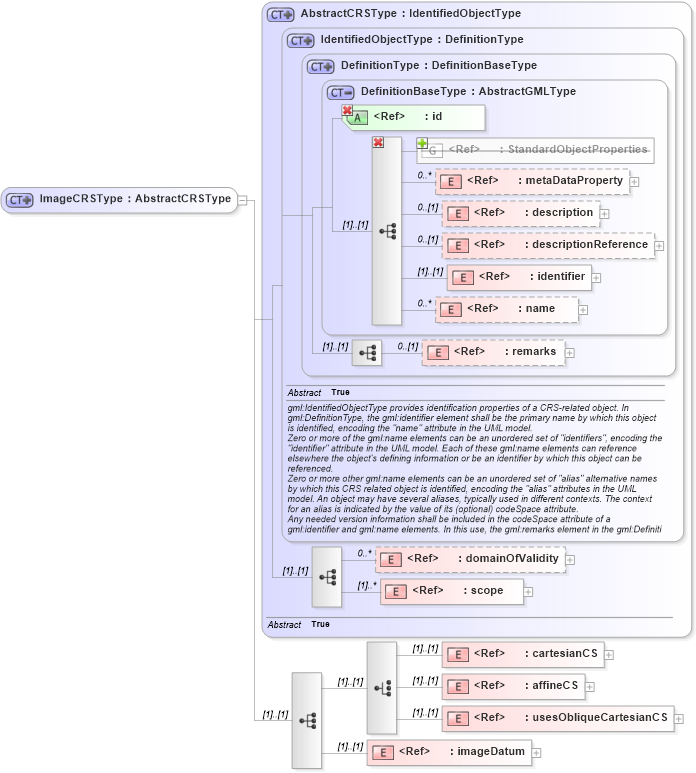

Collapse XSD Schema Diagram:
Drilldown into imageDatum in schema coordinatereferencesystems_xsd Drilldown into usesObliqueCartesianCS in schema deprecatedtypes_xsd Drilldown into affineCS in schema coordinatereferencesystems_xsd Drilldown into cartesianCS in schema coordinatereferencesystems_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into domainOfValidity in schema referencesystems_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionBaseType in schema dictionary_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into IdentifiedObjectType in schema referencesystems_xsd Drilldown into AbstractCRSType in schema referencesystems_xsdXSD Diagram of ImageCRSType in schema coordinatereferencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ImageCRSType">
    <complexContent>
        <extension base="gml:AbstractCRSType">
            <sequence>
                <choice>
                    <element ref="gml:cartesianCS" />
                    <element ref="gml:affineCS" />
                    <element ref="gml:usesObliqueCartesianCS" />
                </choice>
                <element ref="gml:imageDatum" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 unbounded
scope gml:scope (1) unbounded
cartesianCS gml:cartesianCS (1) (1)
affineCS gml:affineCS (1) (1)
usesObliqueCartesianCS gml:usesObliqueCartesianCS (1) (1)
imageDatum gml:imageDatum (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:ImageCRS
