Definition Type: Element
Name: AssignmentAvailability
Namespace: http://www.hr-xml.org/3
Type: nsA:AssignmentAvailabilityType
Containing Schema: Components.xsd
Abstract

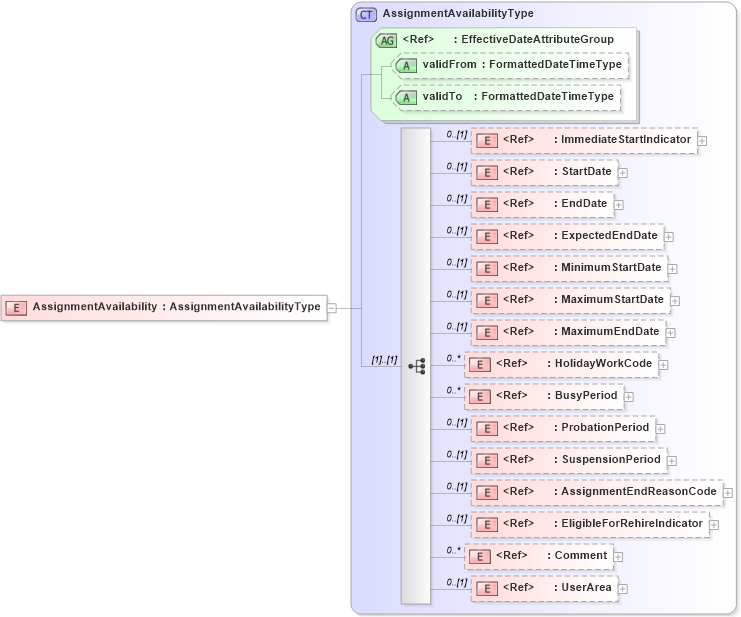

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into EligibleForRehireIndicator in schema fields_xsd Drilldown into AssignmentEndReasonCode in schema fields_xsd Drilldown into SuspensionPeriod in schema components_xsd Drilldown into ProbationPeriod in schema components_xsd Drilldown into BusyPeriod in schema components_xsd Drilldown into HolidayWorkCode in schema fields_xsd Drilldown into MaximumEndDate in schema fields_xsd Drilldown into MaximumStartDate in schema fields_xsd Drilldown into MinimumStartDate in schema fields_xsd Drilldown into ExpectedEndDate in schema fields_xsd Drilldown into EndDate in schema fields_xsd Drilldown into StartDate in schema fields_xsd Drilldown into ImmediateStartIndicator in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into AssignmentAvailabilityType in schema components_xsdXSD Diagram of AssignmentAvailability in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AssignmentAvailability" type="AssignmentAvailabilityType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ImmediateStartIndicator nsA:ImmediateStartIndicator 0 (1)
StartDate nsA:StartDate 0 (1)
EndDate nsA:EndDate 0 (1)
ExpectedEndDate nsA:ExpectedEndDate 0 (1)
MinimumStartDate nsA:MinimumStartDate 0 (1)
MaximumStartDate nsA:MaximumStartDate 0 (1)
MaximumEndDate nsA:MaximumEndDate 0 (1)
HolidayWorkCode nsA:HolidayWorkCode 0 unbounded
BusyPeriod nsA:BusyPeriod 0 unbounded
ProbationPeriod nsA:ProbationPeriod 0 (1)
SuspensionPeriod nsA:SuspensionPeriod 0 (1)
AssignmentEndReasonCode nsA:AssignmentEndReasonCode 0 (1)
EligibleForRehireIndicator nsA:EligibleForRehireIndicator 0 (1)
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
